30 x 24 Inch Cabinet for Dual Fire Dept Valve or Rack for 75 Ft Fire Hose
Model VC 2430 Series
Submittal
Submittal Fire Dept Valve Cabinet (pdf)
Model VC 2430 Series
30 x 24 Inch Cabinet for Dual Fire Dept Valve or Rack for 75 Ft Fire Hose
VC 2430 Series Cabinets are designed for various fire protection needs.

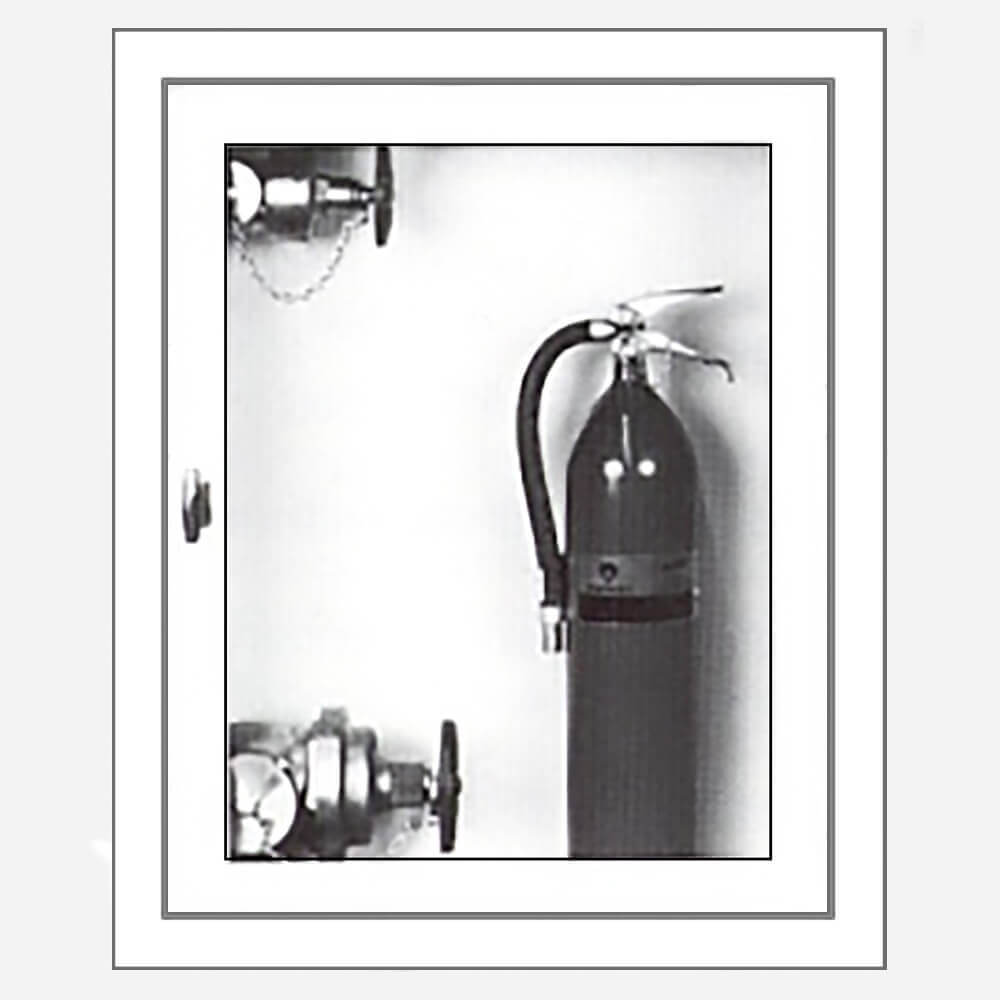

- Dual Fire Dept Valves (1-1/2" or 2-1/2" sizes); sufficent additional space for ABC Fire Extinguisher (up to 7" diameter or 20 lbs capacity)

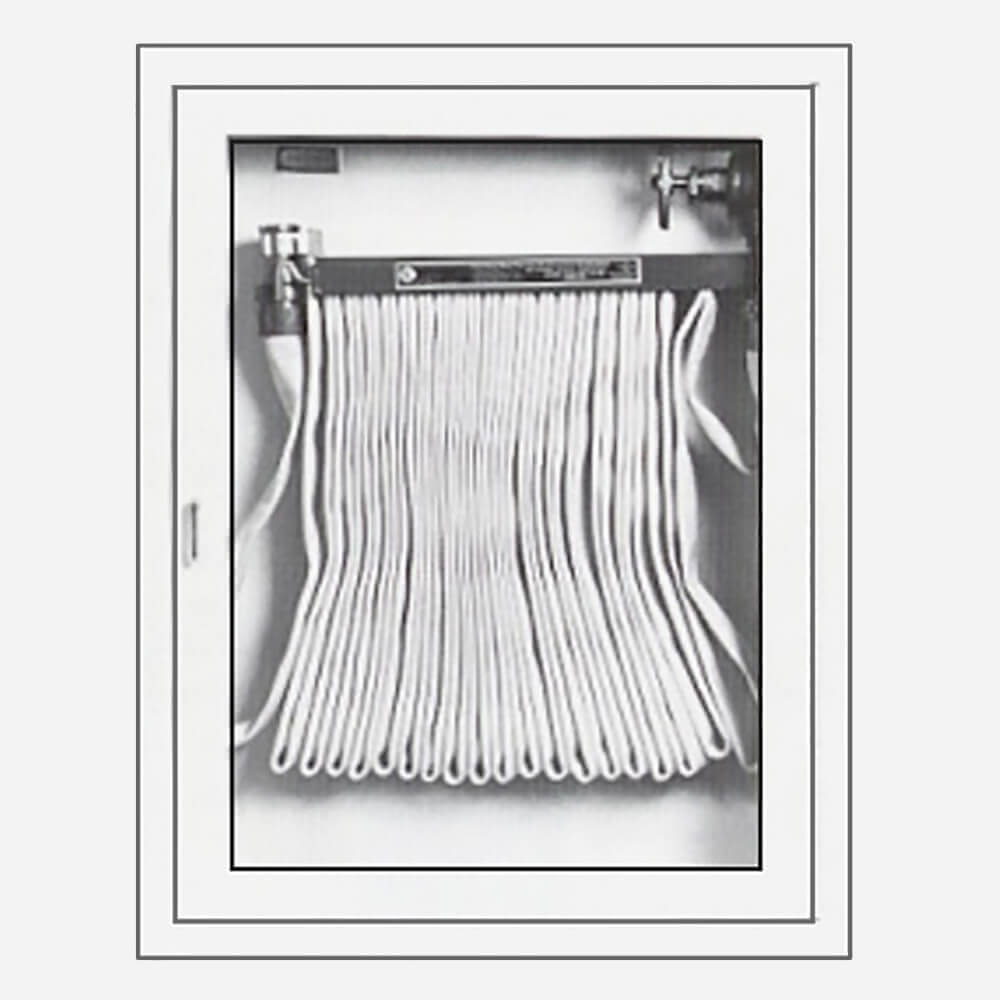

- Semi-Automatic Hanging Rack for 75 Ft Fire Hose
This particular cabinet is Recessed and is fabricated entirely in steel.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Larsen Fire Hose Cabinet (may include cabinets with additional valve or storage space for extinguisher) VC 1818, VC 2626, VC 2430, VC 4016, VC 3616 Series | 0 | 508 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 712 KB | ||
 | | Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets | 0 | 25 KB |
Specifications
| Cabinet Trim Style | Recessed |
| Cabinet Projection | 0.3125 |
| Cabinet Door Frame Material | Steel |
| Cabinet Inside Box Height (inches) | 30 |
| Cabinet Inside Box Width (inches) | 24 |
| Cabinet Inside Box Depth (inches) | 8 |
| Outside Trim Flange Height (inches) | 33.5 |
| Outside Trim Flange Width (inches) | 27.5 |
| Rough Opening Height (inches) | 31 |
| Rough Opening Width (inches) | 25 |
| Rough Opening Depth (inches) | 8.25 |
| Fire Rated | No |
| Cabinet Style | Architectural |
| Larsen's Fire Extinguishers | [up to 20 lb ABC Extinguishers] |

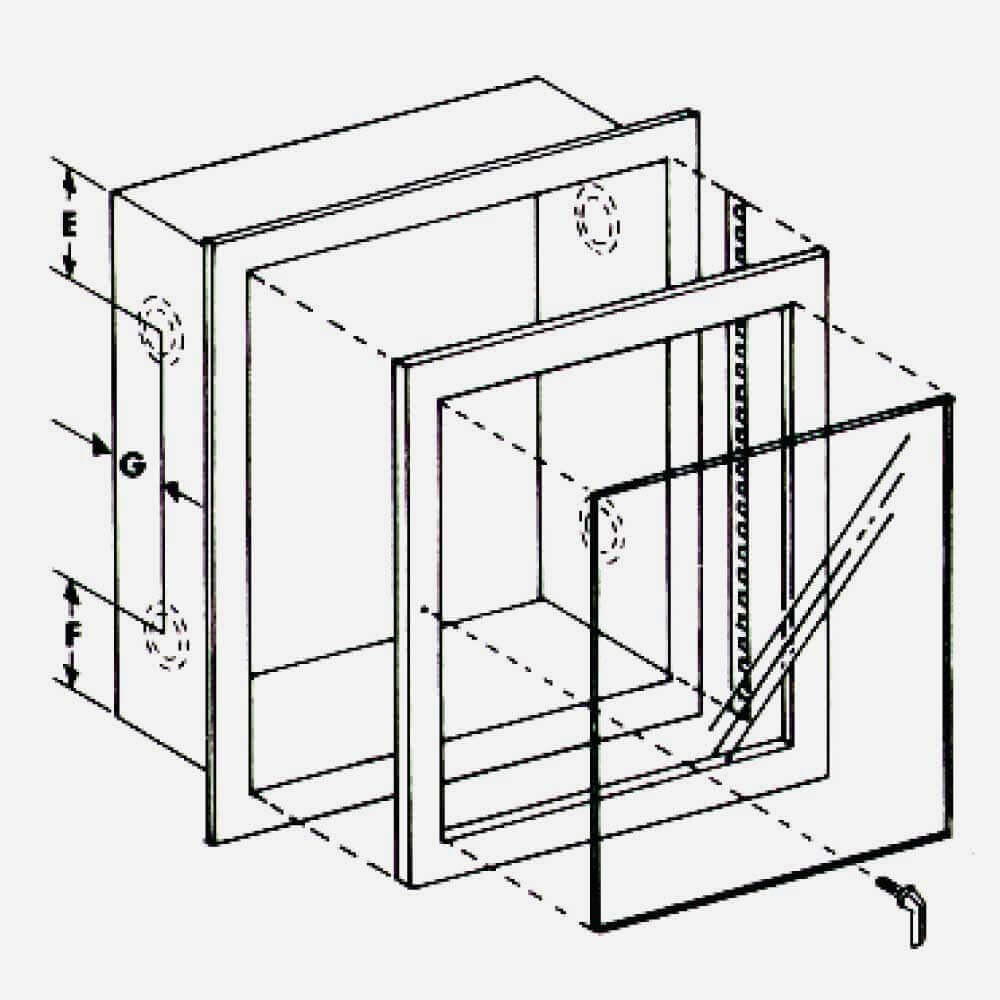

| Knockout from Top Dim E | 4 |
| Knockout from Bottom Dim - F | 4 |
| Knockout from Back Dim - G | 4 |
| Separate Fire Dept Valve 1 in Cabinet | 1.5 or 2.5 inch |
| Separate Fire Dept Valve 2 in Cabinet | 1.5 or 2.5 inch |
| Cabinet Internal Size (Height x Width x Depth inches) | 30 x 24 x 8 |
| Length of Hose Accommodated by Cabinet (ft) | 75 |
| Hose Mounting in Cabinet | Semi-Automatic Hanging |
