30 x 24 Inch Cabinet for Dual Fire Dept Valve or Rack with 75 Ft Hose- Steel, Trimless
Model VC S 2430-RT
Submittal
Submittal Fire Dept Valve Cabinet (pdf)
Model VC S 2430-RT
30 x 24 Inch Cabinet for Dual Fire Dept Valve or Rack with 75 Ft Hose- Steel, Trimless

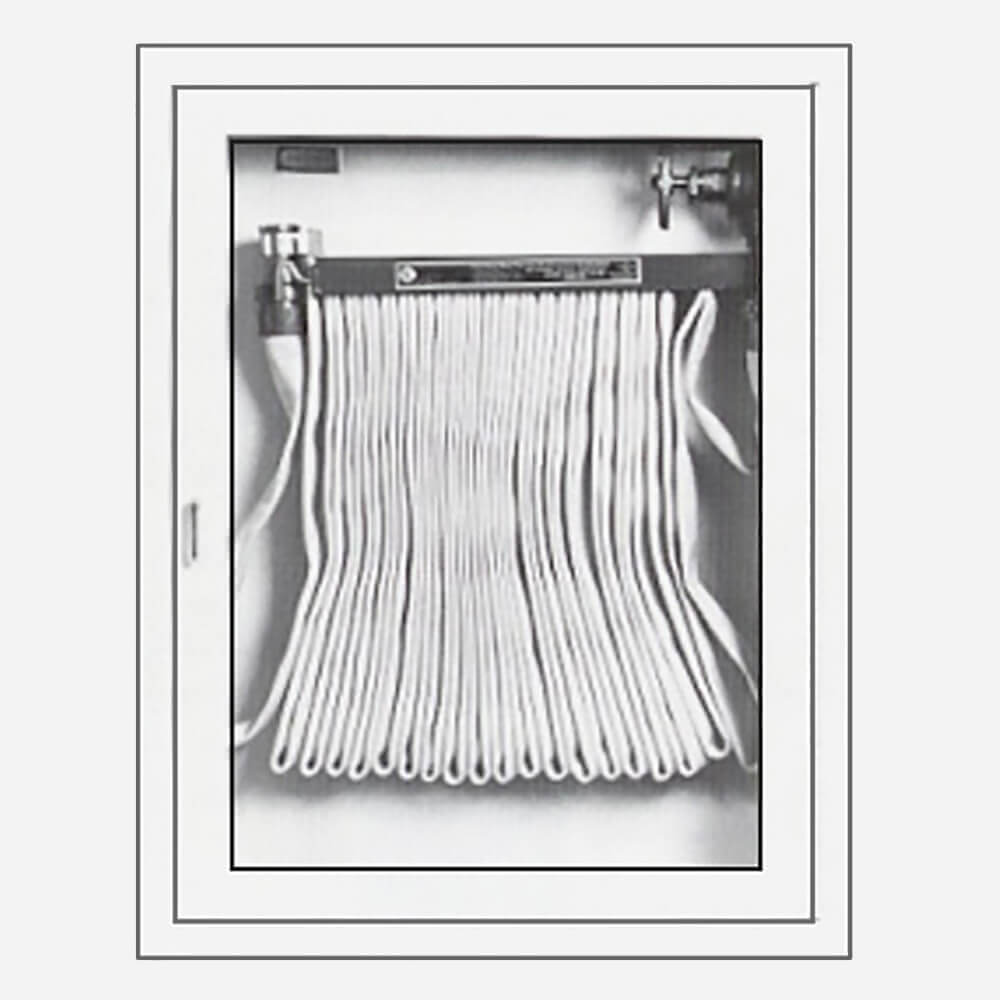

<p>VC 2430 Series Cabinets are designed for various fire protection needs.</p> <ul> <li>Dual Fire Dept Valves (1-1/2" or 2-1/2" sizes); sufficent additional space for ABC Fire Extinguisher (up to 7" diameter or 20 lbs capacity)</li> <li>Semi-Automatic Hanging Rack for 75 Ft Fire Hose</li> </ul> <p>This particular cabinet features Trimless Mounting and is fabricated entirely in steel.</p> <p> </p>
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Larsen Fire Hose Cabinet (may include cabinets with additional valve or storage space for extinguisher) VC 1818, VC 2626, VC 2430, VC 4016, VC 3616 Series | 0 | 508 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 712 KB |
Specifications
| Cabinet Trim Style | Trimless |
| Cabinet Door Frame Material | Steel |
| Cabinet Inside Box Height (inches) | 30 |
| Cabinet Inside Box Width (inches) | 24 |
| Cabinet Inside Box Depth (inches) | 8 |
| Rough Opening Depth (inches) | 8.5 |
| Fire Rated | No |
| Cabinet Style | Architectural |

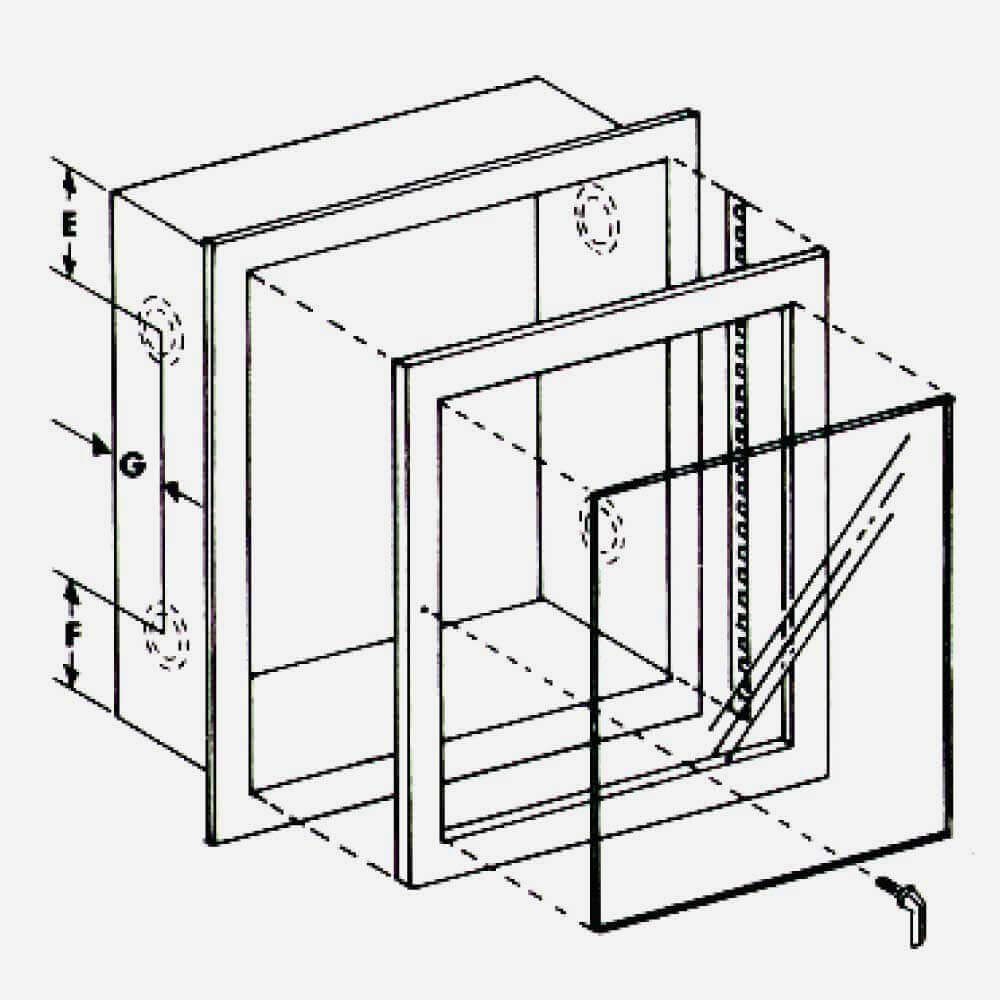

| Knockout from Top Dim E | 4 |
| Knockout from Bottom Dim - F | 4 |
| Knockout from Back Dim - G | 4 |
| Separate Fire Dept Valve 1 in Cabinet | 1.5 or 2.5 inch |
| Separate Fire Dept Valve 2 in Cabinet | 1.5 or 2.5 inch |
| Cabinet Internal Size (Height x Width x Depth inches) | 30 x 24 x 8 |
| Length of Hose Accommodated by Cabinet (ft) | 75 |
| Hose Mounting in Cabinet | Semi-Automatic Hanging |
