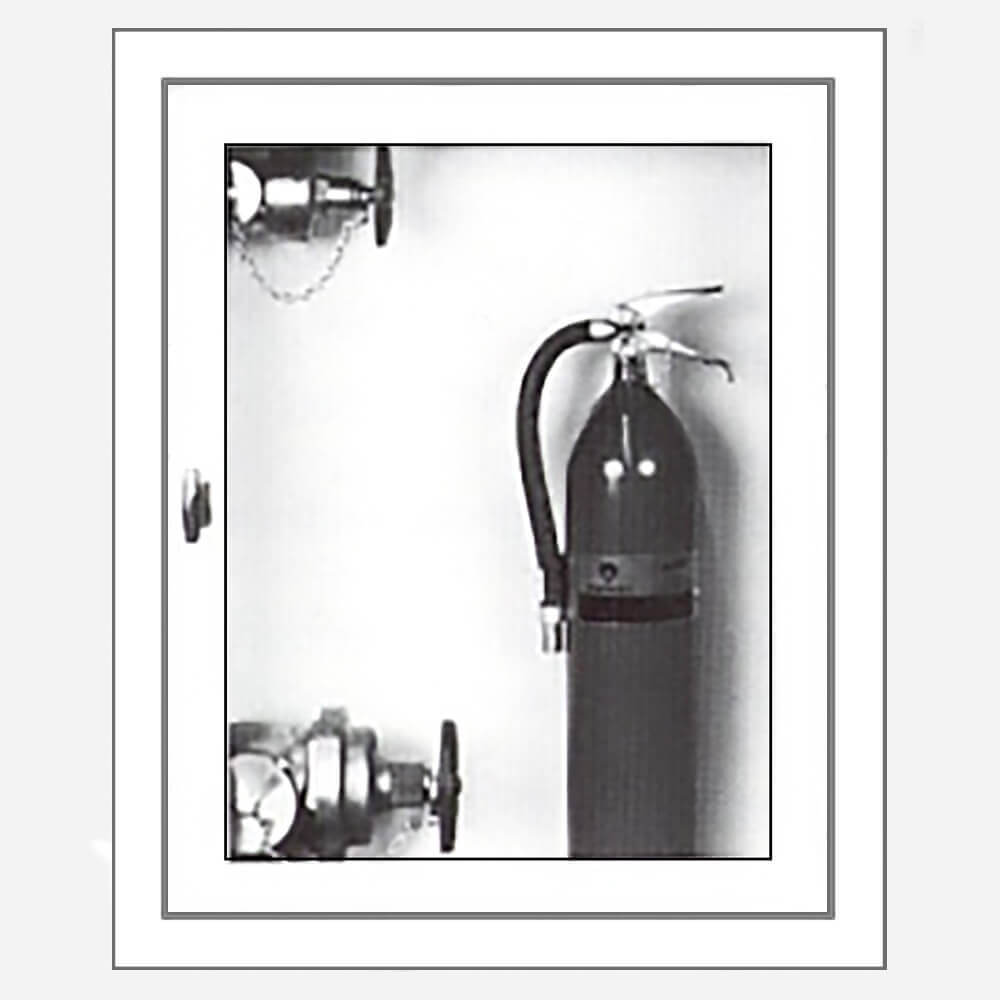

30 x 24 Inch Cabinet for Dual Fire Dept Valve or Rack with 75 Ft Hose- Aluminum Door and Frame, Semi-Recessed, 1.25 Inch Trim

Model VC AL 2430-RK

Submittal

Submittal Fire Dept Valve Cabinet (pdf)

Model VC AL 2430-RK

VC 2430 Series Cabinets are designed for various fire protection needs.

Dual Fire Dept Valves (1-1/2" or 2-1/2" sizes); sufficent additional space for ABC Fire Extinguisher (up to 7" diameter or 20 lbs capacity)
Semi-Automatic Hanging Rack for 75 Ft Fire Hose

This particular cabinet features Semi-Recessed Mounting, 1-1/4" Trim, steel pan (inside box), aluminum door/frame.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

	Resource Type	Title	Description	Answers	File Size	Action
	Submittals	Submittal Fire Dept Valve Cabinet (pdf)	Larsen Fire Hose Cabinet (may include cabinets with additional valve or storage space for extinguisher) VC 1818, VC 2626, VC 2430, VC 4016, VC 3616 Series	0	508 KB
	Literature/Brochures	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	0	712 KB

Can't find what you are looking for? Get in touch

Shows specifications for standard configuration. Configuration options may change specifications.

Cabinet Trim Style	Semi-Recessed
Cabinet Projection	1.25
Cabinet Door Frame Material	Aluminum
Cabinet Inside Box Height (inches)	30
Cabinet Inside Box Width (inches)	24
Cabinet Inside Box Depth (inches)	8
Outside Trim Flange Height (inches)	32.75
Outside Trim Flange Width (inches)	26.75
Rough Opening Height (inches)	31
Rough Opening Width (inches)	25
Rough Opening Depth (inches)	7.25
Fire Rated	No
Cabinet Style	Architectural
Knockout from Top Dim E	4
Knockout from Bottom Dim - F	4
Knockout from Back Dim - G	4
Separate Fire Dept Valve 1 in Cabinet	1.5 or 2.5 inch
Separate Fire Dept Valve 2 in Cabinet	1.5 or 2.5 inch
Cabinet Internal Size (Height x Width x Depth inches)	30 x 24 x 8
Length of Hose Accommodated by Cabinet (ft)	75
Hose Mounting in Cabinet	Semi-Automatic Hanging
