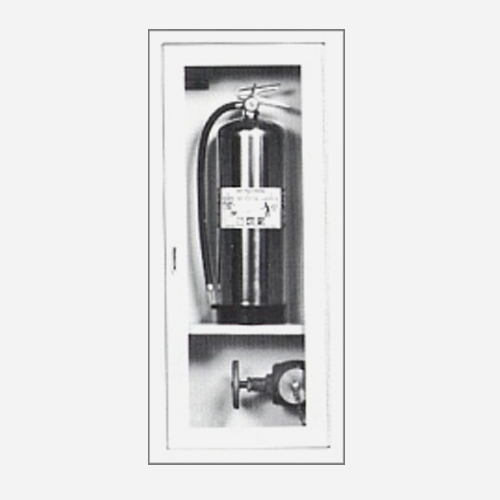

Cabinet for 2.5 inch Fire Dept Valve and up to 10 Lbs ABC Extinguisher [40 H x 16 W inches]
Model VC 4016 Series
Submittal
Submittal Fire Dept Valve Cabinet (pdf)
Model VC 4016 Series
Cabinet for 2.5 inch Fire Dept Valve and up to 10 Lbs ABC Extinguisher [40 H x 16 W inches]
Accommodates 2.5 inch Fire Dept Valve with Cap and Chain and up to 10 Lbs ABC Fire Extinguisher
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Larsen Fire Hose Cabinet (may include cabinets with additional valve or storage space for extinguisher) VC 1818, VC 2626, VC 2430, VC 4016, VC 3616 Series | 0 | 508 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 712 KB | ||
 | | Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets | 0 | 25 KB |
Specifications
| Cabinet Trim Style | Recessed |
| Cabinet Projection | 0.3125 |
| Cabinet Door Frame Material | Steel |
| Cabinet Inside Box Height (inches) | 40 |
| Cabinet Inside Box Width (inches) | 16 |
| Cabinet Inside Box Depth (inches) | 8 |
| Outside Trim Flange Height (inches) | 43.5 |
| Outside Trim Flange Width (inches) | 19.5 |
| Rough Opening Height (inches) | 41 |
| Rough Opening Width (inches) | 17 |
| Rough Opening Depth (inches) | 8.25 |
| Fire Rated | No |
| Cabinet Style | Architectural |
| Larsen's Fire Extinguishers | [up to 20 lb ABC Extinguishers] |
| Knockout from Bottom Dim - F | 6 |
| Knockout from Back Dim - G | 4 |
| Separate Fire Dept Valve 1 in Cabinet | 2.5 inch |
| Cabinet Internal Size (Height x Width x Depth inches) | 40 x 16 x 8 |
