Frameless Acrylic Door Cabinets for up to 10 Lbs ABC Fire Extinguisher
Model G2409 6 inch ID Gemini Series
Submittal
Submittal Gemini Series Fire Extinguisher Cabinets (pdf)
Model G2409 6 inch ID Gemini Series
Frameless Acrylic Door Cabinets for up to 10 Lbs ABC Fire Extinguisher
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets | 25 KB | ||
 | | Gemini Frameless Acrylic Door Cabinets for Fire Extinguisher - G2409, G2712, G2720, G3012, G3612, G3216 Series | 1 MB | ||
| | Larsen's Brochure [2016 Edition]Fire Extinguishers and Brackets, Fire Rated Extinguisher Cabinets — Flame-Shield® Option, Medallion, Architectural, Gemini, Cameo, Occult Series Cabinets; Detention Cabinets, Fire Blanket Cabinets, Exclusive Options | 1 MB | ||
| | MGI Brands Flyer (pdf) | 712 KB |
Specifications
| Cabinet Style | Gemini |
| Larsen's Fire Extinguishers | MP2½, MP5, MP5-A, DC2½, DC5, MP6, MP10, DC6, DC10, CD5, HT2½, HT5 |
Product Variations
Model ID | Size | Door and Frame Material | Trim Style | Cabinet Projection | Fire-Rated |
|---|---|---|---|---|---|
| G2409-R2 | 24 x 9.5 x 6 | Steel | Recessed | 0.3125 | No |
| G2409-R7 | 24 x 9.5 x 6 | Steel | Semi-Recessed | 1.5 | No |
| G2409-6R | 24 x 9.5 x 6 | Steel | Semi-Recessed | 2.5 | No |
| G2409-RM | 24 x 9.5 x 6 | Steel | Semi-Recessed | 4.5 | No |
| G2409-RT | 24 x 9.5 x 6 | Steel | Trimless | --- | No |
| G2409-R4 | 24 x 9.5 x 6 | Steel | Semi-Recessed | 3.5 | No |
| G2409-SM | 27.5 x 13 x 6 | Steel | Surface Mount | --- | No |
| G2409-RA | 24 x 9.5 x 6 | Steel | Semi-Recessed | 4 | No |
| AL G2409-R2 | 24 x 9.5 x 6 | Aluminum | Recessed | 0.3125 | No |
| AL G2409-R7 | 24 x 9.5 x 6 | Aluminum | Semi-Recessed | 1.5 | No |
| AL G2409-6R | 24 x 9.5 x 6 | Aluminum | Semi-Recessed | 2.5 | No |
| AL G2409-RM | 24 x 9.5 x 6 | Aluminum | Semi-Recessed | 4.5 | No |
| AL G2409-RT | 24 x 9.5 x 6 | Aluminum | Trimless | --- | No |
| AL G2409-R4 | 24 x 9.5 x 6 | Aluminum | Semi-Recessed | 3.5 | No |
| AL G2409-SM | 27.5 x 13 x 6 | Aluminum | Surface Mount | --- | No |
| AL G2409-RA | 24 x 9.5 x 6 | Aluminum | Semi-Recessed | 4 | No |
| SS G2409-R2 | 24 x 9.5 x 6 | Stainless Steel | Recessed | 0.3125 | No |
| SS G2409-R7 | 24 x 9.5 x 6 | Stainless Steel | Semi-Recessed | 1.5 | No |
| SS G2409-6R | 24 x 9.5 x 6 | Stainless Steel | Semi-Recessed | 2.5 | No |
| SS G2409-RM | 24 x 9.5 x 6 | Stainless Steel | Semi-Recessed | 4.5 | No |
| SS G2409-RT | 24 x 9.5 x 6 | Stainless Steel | Trimless | --- | No |
| SS G2409-R4 | 24 x 9.5 x 6 | Stainless Steel | Semi-Recessed | 3.5 | No |
| SS G2409-SM | 27.5 x 13 x 6 | Stainless Steel | Surface Mount | --- | No |
| SS G2409-RA | 24 x 9.5 x 6 | Stainless Steel | Semi-Recessed | 4 | No |

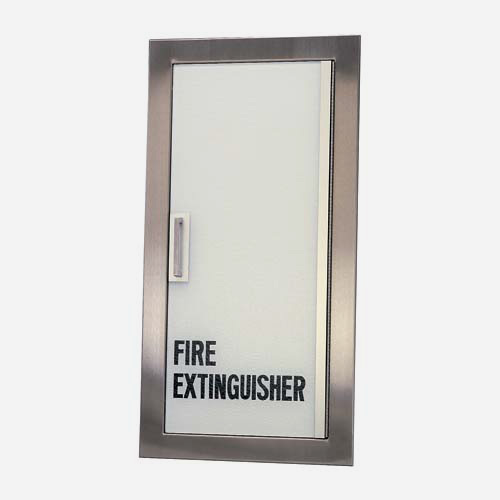

| FS G2409-R2 | 24 x 9.5 x 6 | Steel, Aluminum, Stainless Steel | Recessed | 0.3125 | Yes |
| FS G2409-R7 | 24 x 9.5 x 6 | Steel, Aluminum, Stainless Steel | Semi-Recessed | 1.5 | Yes |
| FS G2409-6R | 24 x 9.5 x 6 | Steel, Aluminum, Stainless Steel | Semi-Recessed | 2.5 | Yes |
| FS G2409-RM | 24 x 9.5 x 6 | Steel, Aluminum, Stainless Steel | Semi-Recessed | 4.5 | Yes |
| FS G2409-R4 | 24 x 9.5 x 6 | Steel, Aluminum, Stainless Steel | Semi-Recessed | 3.5 | Yes |
| FS G2409-RA | 24 x 9.5 x 6 | Steel, Aluminum, Stainless Steel | Semi-Recessed | 4 | Yes |
