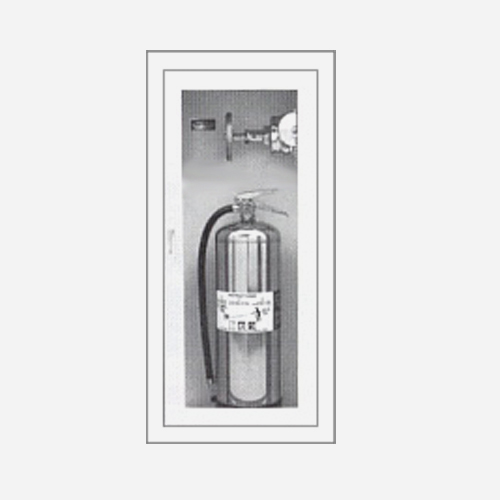

Fire Extinguisher Cabinet for 2.5 inch Fire Dept Valve and up to 10 Lbs ABC Extinguisher [36 H x 16 W inches]
Model VC 3616 Series
Submittal
Submittal Fire Dept Valve Cabinet (pdf)
Model VC 3616 Series
Fire Extinguisher Cabinet for 2.5 inch Fire Dept Valve and up to 10 Lbs ABC Extinguisher [36 H x 16 W inches]
Accommodates 2.5 inch Fire Dept Valve with Cap and Chain and up to 10 Lbs ABC Fire Extinguisher
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Larsen Fire Hose Cabinet (may include cabinets with additional valve or storage space for extinguisher) VC 1818, VC 2626, VC 2430, VC 4016, VC 3616 Series | 0 | 508 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 712 KB | ||
 | | Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets | 0 | 25 KB |
Specifications
| Cabinet Trim Style | Recessed |
| Cabinet Projection | 0.3125 |
| Cabinet Door Frame Material | Steel |
| Cabinet Inside Box Height (inches) | 36 |
| Cabinet Inside Box Width (inches) | 16 |
| Cabinet Inside Box Depth (inches) | 8 |
| Outside Trim Flange Height (inches) | 39.5 |
| Outside Trim Flange Width (inches) | 19.5 |
| Rough Opening Height (inches) | 37 |
| Rough Opening Width (inches) | 17 |
| Rough Opening Depth (inches) | 8.25 |
| Fire Rated | No |
| Cabinet Style | Architectural |
| Larsen's Fire Extinguishers | MP2½, MP5, DC2½, DC5, MP6, MP10, DC6, DC10, CD5, HT5, HT11, HT15½, WC6-L |
| Knockout from Bottom Dim - F | 6 |
| Knockout from Back Dim - G | 4 |
| Separate Fire Dept Valve 1 in Cabinet | 2.5 inch |
| Cabinet Internal Size (Height x Width x Depth inches) | 36 x 16 x 8 |
