Cylindrical Bubble Door Cabinets for up to 10 Lbs ABC Fire Extinguisher

Model C2409 Cameo Series
Submittal
Submittal Cameo Series Fire Extinguisher Cabinets (pdf)
C2409 Cameo Series Preview

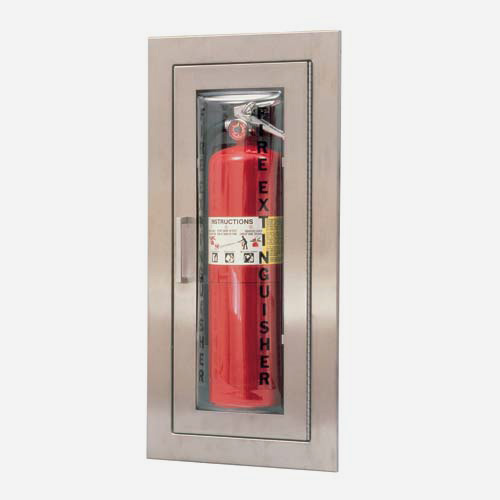

Model C2409 Cameo Series

Cylindrical Bubble Door Cabinets for up to 10 Lbs ABC Fire Extinguisher

These Cameo Series Cabinets feature a nominal inside box dimension of 24 inches (60.9 cm) height, 9.5 inches (24.1 cm) width and 3.5 inches (8.9 cm) depth. Along with the 3.5 cabinet depth, the door features a cylindrical bubble to accommodate a 10 lb ABC Fire Extinguisher.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Specifications
DOC icon
3-Part Spec Fire Extinguisher & Cabinets (doc)
Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets25 KB
PDF icon
Submittals
PDF icon
Submittal Cameo Series Fire Extinguisher Cabinets (pdf)
Cameo Cylindrical Bubble Door and Metal Frame Cabinets for Fire Extinguisher C2409,C3216 Series660 KB
PDF icon
Literature/Brochures
PDF icon
Larsen's Brochure (pdf)
Larsen's Brochure [2016 Edition]Fire Extinguishers and Brackets, Fire Rated Extinguisher Cabinets — Flame-Shield® Option, Medallion, Architectural, Gemini, Cameo, Occult Series Cabinets; Detention Cabinets, Fire Blanket Cabinets, Exclusive Options1 MB
PDF icon
Literature/Brochures
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)712 KB

Specifications

Cabinet StyleCameo
Larsen's Fire ExtinguishersMP2½, MP5, MP5-A, DC2½, DC5, MP6, MP10, DC6, DC10, HT2½, HT5

Product Variations

Model ID
Size
Door and Frame Material
Trim Style
Cabinet Projection
Fire-Rated
C2409-R24 x 9.5 x 3.5SteelRecessed0.3125No
C2409-5R24 x 9.5 x 3.5SteelSemi-Recessed1.5No
C2409-6R24 x 9.5 x 3.5SteelSemi-Recessed2.5No
C2409-RT24 x 9.5 x 3.5SteelTrimless---No
C2409-SM27.5 x 13 x 3.5SteelSurface Mount---No
AL C2409-R24 x 9.5 x 3.5AluminumRecessed0.3125No
AL C2409-5R24 x 9.5 x 3.5AluminumSemi-Recessed1.5No
AL C2409-6R24 x 9.5 x 3.5AluminumSemi-Recessed2.5No
AL C2409-RT24 x 9.5 x 3.5AluminumTrimless---No
AL C2409-SM27.5 x 13 x 3.5AluminumSurface Mount---No
SS C2409-R24 x 9.5 x 3.5Stainless SteelRecessed0.3125No
SS C2409-5R24 x 9.5 x 3.5Stainless SteelSemi-Recessed1.5No
SS C2409-6R24 x 9.5 x 3.5Stainless SteelSemi-Recessed2.5No
SS C2409-RT24 x 9.5 x 3.5Stainless SteelTrimless---No
SS C2409-SM27.5 x 13 x 3.5Stainless SteelSurface Mount---No
B C2409-R24 x 9.5 x 3.5BrassRecessed0.3125No
B C2409-5R24 x 9.5 x 3.5BrassSemi-Recessed1.5No
B C2409-6R24 x 9.5 x 3.5BrassSemi-Recessed2.5No
B C2409-RT24 x 9.5 x 3.5BrassTrimless---No
B C2409-SM27.5 x 13 x 3.5BrassSurface Mount---No
BZ C2409-R24 x 9.5 x 3.5BronzeRecessed0.3125No
BZ C2409-5R24 x 9.5 x 3.5BronzeSemi-Recessed1.5No
BZ C2409-6R24 x 9.5 x 3.5BronzeSemi-Recessed2.5No
BZ C2409-RT24 x 9.5 x 3.5BronzeTrimless---No
BZ C2409-SM27.5 x 13 x 3.5BronzeSurface Mount---No
FS C2409-R24 x 9.5 x 3.5SteelRecessed0.3125Yes
FS C2409-5R24 x 9.5 x 3.5SteelSemi-Recessed1.5Yes
FS C2409-6R24 x 9.5 x 3.5SteelSemi-Recessed2.5Yes
FS AL C2409-R24 x 9.5 x 3.5AluminumRecessed0.3125Yes
FS AL C2409-5R24 x 9.5 x 3.5AluminumSemi-Recessed1.5Yes
FS AL C2409-6R24 x 9.5 x 3.5AluminumSemi-Recessed2.5Yes
FS SS C2409-R24 x 9.5 x 3.5Stainless SteelRecessed0.3125Yes
FS SS C2409-5R24 x 9.5 x 3.5Stainless SteelSemi-Recessed1.5Yes
FS SS C2409-6R24 x 9.5 x 3.5Stainless SteelSemi-Recessed2.5Yes
FS B C2409-R24 x 9.5 x 3.5BrassRecessed0.3125Yes
FS B C2409-5R24 x 9.5 x 3.5BrassSemi-Recessed1.5Yes
FS B C2409-6R24 x 9.5 x 3.5BrassSemi-Recessed2.5Yes
FS BZ C2409-R24 x 9.5 x 3.5BronzeRecessed0.3125Yes
FS BZ C2409-5R24 x 9.5 x 3.5BronzeSemi-Recessed1.5Yes
FS BZ C2409-6R24 x 9.5 x 3.5BronzeSemi-Recessed2.5Yes
