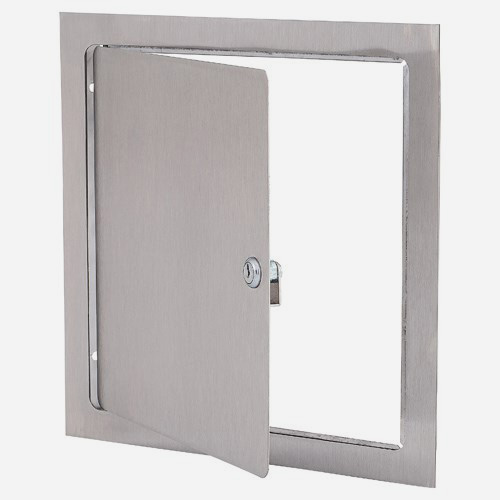

Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel

Model L-DW-SS Series

Submittal

Submittal L-DW 16 Gauge Series Access Door (pdf)

Model L-DW-SS Series

Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel

ATTENTION: L-MPSS Series will be changing to L-DW-SS Series

Access door and frame shall be fabricated from 16 gauge, stainless steel. The door shall have rounded safety corners and a concealed piano hinge. Frame shall be one piece construction with no mitres or welds on the face. Latch shall be screwdriver operated. Standard material thickness is 16 gauge; heavier duty 14 gauge doors are also available.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal L-DW 16 Gauge Series Access Door (pdf)	Dry Wall Access Door - 16 Gauge Galvannealed Steel [formerly L-MPG Series]; 16 Gauge Stainless Steel [formerly L-MPSS Series]	125 KB
Submittals	Submittal L-DW 14 Gauge Series Access Door (pdf)	Dry Wall Access Door - 14 Gauge Galvannealed Steel; 14 Gauge Stainless Steel	118 KB
Literature/Brochures	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	712 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Options	Allen Key Latch (option -AKL), Cylinder Lock (option -CL), Cylinder Lock with Dust Shutter (option -CLD), Masonry Anchor Straps (option -MAS), Mortise Cylinder Lock Preparation (option -MLP), T Handle (option -TH), 14 Gauge Construction (option 14)
Fire Rated	No
AP Door	16 gauge Type 304 stainless steel
AP Frame	16 gauge Type 304 stainless steel
AP Hinge	Concealed pivoting rod hinge
Legacy Model	L-MPSS

Product Variations

Image	Model ID	Description
	L-DW-SS 6x6	6 x 6 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 8x8	8 x 8 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 8x12	8 x 12 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 10x10	10 x 10 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 12x12	12 x 12 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 12x16	12 x 16 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 12x18	12 x 18 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 12x24	12 x 24 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 14x14	14 x 14 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 14x20	14 x 20 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 14x24	14 x 24 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 15x15	15 x 15 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 16x16	16 x 16 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 16x20	16 x 20 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 16x24	16 x 24 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 18x18	18 x 18 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 18x24	18 x 24 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 18x36	18 x 36 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 20x20	20 x 20 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 20x24	20 x 24 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 20x30	20 x 30 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 22x22	22 x 22 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 22x30	22 x 30 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 24x24	24 x 24 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 24x30	24 x 30 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 24x36	24 x 36 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 24x48	24 x 48 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 30x30	30 x 30 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 30x36	30 x 36 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 32x32	32 x 32 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 36x36	36 x 36 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 36x48	36 x 48 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
	L-DW-SS 48x48	48 x 48 Inch Non-Fire-Rated Flush Access Panel for All Surfaces - Stainless Steel
