Frameless Acrylic Door Cabinets for up to 5 Lbs ABC Fire Extinguisher

Model G2409 5 inch ID Gemini Series
Submittal
Submittal Gemini Series Fire Extinguisher Cabinets (pdf)

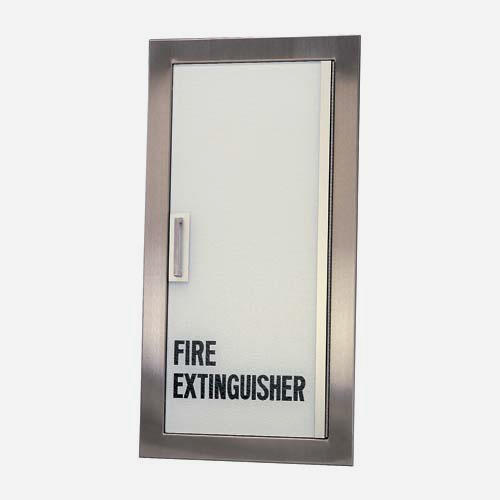

FS G2409-R1 Preview
Model G2409 5 inch ID Gemini Series

Frameless Acrylic Door Cabinets for up to 5 Lbs ABC Fire Extinguisher

These Gemini Series Cabinets feature a nominal inside box dimension of 24 inches (60.9 cm) height, 9.5 inches (24.1 cm) width and 5 inches (12.7 cm) depth.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Specifications
DOC icon
3-Part Spec Fire Extinguisher & Cabinets (doc)
Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets25 KB
PDF icon
Submittals
PDF icon
Submittal Gemini Series Fire Extinguisher Cabinets (pdf)
Gemini Frameless Acrylic Door Cabinets for Fire Extinguisher - G2409, G2712, G2720, G3012, G3612, G3216 Series1 MB
PDF icon
Literature/Brochures
PDF icon
Larsen's Brochure (pdf)
Larsen's Brochure [2016 Edition]Fire Extinguishers and Brackets, Fire Rated Extinguisher Cabinets — Flame-Shield® Option, Medallion, Architectural, Gemini, Cameo, Occult Series Cabinets; Detention Cabinets, Fire Blanket Cabinets, Exclusive Options1 MB
PDF icon
Literature/Brochures
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)712 KB

Specifications

Cabinet StyleGemini
Larsen's Fire ExtinguishersMP2½, MP5, MP5-A, DC2½, DC5, HT2½, HT5

Product Variations

Model ID
Size
Door and Frame Material
Trim Style
Cabinet Projection
Fire-Rated
G2409-R124 x 9.5 x 4.5SteelRecessed0.3125No
G2409-5R24 x 9.5 x 4.5SteelSemi-Recessed1.5No
G2409-R324 x 9.5 x 4.5SteelSemi-Recessed2.5No
AL G2409-R124 x 9.5 x 5AluminumRecessed0.3125No
AL G2409-5R24 x 9.5 x 5AluminumSemi-Recessed1.25No
AL G2409-R324 x 9.5 x 5AluminumSemi-Recessed2.5No
SS G2409-R124 x 9.5 x 5Stainless SteelRecessed0.3125No
SS G2409-5R24 x 9.5 x 5Stainless SteelSemi-Recessed1.5No
SS G2409-R324 x 9.5 x 5Stainless SteelSemi-Recessed2.5No
FS G2409-R124 x 9.5 x 5SteelRecessed0.3125Yes
FS G2409-5R24 x 9.5 x 5SteelSemi-Recessed1.5Yes
FS G2409-R324 x 9.5 x 5SteelSemi-Recessed2.5Yes
FS AL G2409-R124 x 9.5 x 5AluminumRecessed0.3125Yes
FS AL G2409-5R24 x 9.5 x 5AluminumSemi-Recessed1.5Yes
FS AL G2409-R324 x 9.5 x 5AluminumSemi-Recessed2.5Yes
FS SS G2409-R124 x 9.5 x 5Stainless SteelRecessed0.3125Yes
FS SS G2409-5R24 x 9.5 x 5Stainless SteelSemi-Recessed1.5Yes
FS SS G2409-R324 x 9.5 x 5Stainless SteelSemi-Recessed2.5Yes
