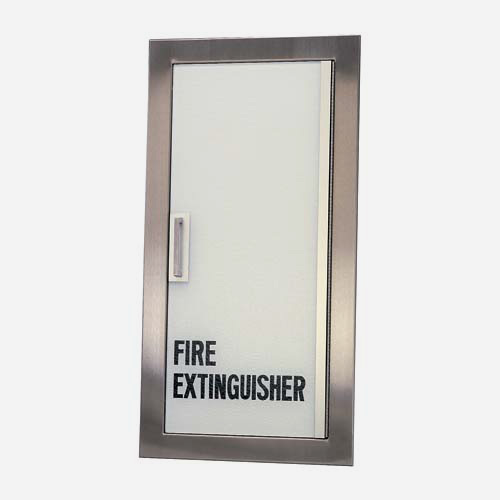

Frameless Acrylic Door Cabinets for up to 20 Lbs ABC Fire Extinguisher [27 H x 12 W inches]
Model G2712 Gemini Series
Submittal
2 available
Model G2712 Gemini Series
Frameless Acrylic Door Cabinets for up to 20 Lbs ABC Fire Extinguisher [27 H x 12 W inches]
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets | 25 KB | ||
 | | Gemini Frameless Acrylic Door Cabinets for Fire Extinguisher - G2409, G2712, G2720, G3012, G3612, G3216 Series | 1 MB | ||
| | Fire-Rated Architectural Traditional Fire Extinguisher Cabinets FS 2409,FS 2712, FS 2720, FS 3612 Series; Fire-Rated Medallion Series Brass Door Fire Extinguisher Cabinet FS B2409, FS B2712 Series | 2 MB | ||
| | Larsen's Brochure [2016 Edition]Fire Extinguishers and Brackets, Fire Rated Extinguisher Cabinets — Flame-Shield® Option, Medallion, Architectural, Gemini, Cameo, Occult Series Cabinets; Detention Cabinets, Fire Blanket Cabinets, Exclusive Options | 1 MB | ||
| | MGI Brands Flyer (pdf) | 712 KB |
Specifications
| Cabinet Style | Gemini |
| Larsen's Fire Extinguishers | PW2½, MP20, DC20, CD10, WC-6L, HT11, HT15½ |
Product Variations
Model ID | Size | Door and Frame Material | Trim Style | Cabinet Projection | Fire-Rated |
|---|---|---|---|---|---|
| G2712-R | 27 x 12 x 8 | Steel | Recessed | 0.3125 | No |
| G2712-RL | 27 x 12 x 8 | Steel | Semi-Recessed | 2.5 | No |
| G2712-RM | 27 x 12 x 8 | Steel | Semi-Recessed | 4.5 | No |
| G2712-RK | 27 x 12 x 8 | Steel | Semi-Recessed | 1.25 | No |
| G2712-RT | 27 x 12 x 8 | Steel | Trimless | --- | No |
| G2712-SM | 30.5 x 15.5 x 8.5 | Steel | Surface Mount | --- | No |
| G2712-RA | 27 x 12 x 8 | Steel | Semi-Recessed | 4 | No |
| AL G2712-R | 27 x 12 x 8 | Aluminum | Recessed | 0.3125 | No |
| AL G2712-RK | 27 x 12 x 8 | Aluminum | Semi-Recessed | 1.25 | No |
| AL G2712-RL | 27 x 12 x 8 | Aluminum | Semi-Recessed | 2.5 | No |
| AL G2712-RM | 27 x 12 x 8 | Aluminum | Semi-Recessed | 4.5 | No |
| AL G2712-RT | 27 x 12 x 8 | Aluminum | Trimless | --- | No |
| AL G2712-SM | 30.5 x 15.5 x 8.5 | Aluminum | Surface Mount | --- | No |
| AL G2712-RA | 27 x 12 x 8 | Aluminum | Semi-Recessed | 4 | No |
| SS G2712-R | 27 x 12 x 8 | Stainless Steel | Recessed | 0.3125 | No |
| SS G2712-RK | 27 x 12 x 8 | Stainless Steel | Semi-Recessed | 1.25 | No |
| SS G2712-RL | 27 x 12 x 8 | Stainless Steel | Semi-Recessed | 2.5 | No |
| SS G2712-RM | 27 x 12 x 8 | Stainless Steel | Semi-Recessed | 4.5 | No |
| SS G2712-RT | 27 x 12 x 8 | Stainless Steel | Trimless | --- | No |
| SS G2712-SM | 30.5 x 15.5 x 8.5 | Stainless Steel | Surface Mount | --- | No |
| SS G2712-RA | 27 x 12 x 8 | Stainless Steel | Semi-Recessed | 4 | No |
| FS G2712-R | 27 x 12 x 8 | Steel | Recessed | 0.3125 | Yes |
| FS G2712-RK | 27 x 12 x 8 | Steel | Semi-Recessed | 1.25 | Yes |
| FS G2712-RL | 27 x 12 x 8 | Steel | Semi-Recessed | 2.5 | Yes |
| FS G2712-RM | 27 x 12 x 8 | Steel | Semi-Recessed | 4.5 | Yes |
| FS G2712-RA | 27 x 12 x 8 | Steel | Semi-Recessed | 4 | Yes |
| FS AL G2712-R | 27 x 12 x 8 | Aluminum | Recessed | 0.3125 | Yes |
| FS AL G2712-RK | 27 x 12 x 8 | Aluminum | Semi-Recessed | 1.25 | Yes |
| FS AL G2712-RL | 27 x 12 x 8 | Aluminum | Semi-Recessed | 2.5 | Yes |
| FS AL G2712-RM | 27 x 12 x 8 | Aluminum | Semi-Recessed | 4.5 | Yes |
| FS AL G2712-RA | 27 x 12 x 8 | Aluminum | Semi-Recessed | 4 | Yes |
| FS SS G2712-R | 27 x 12 x 8 | Stainless Steel | Recessed | 0.3125 | Yes |
| FS SS G2712-RK | 27 x 12 x 8 | Stainless Steel | Semi-Recessed | 1.25 | Yes |
| FS SS G2712-RL | 27 x 12 x 8 | Stainless Steel | Semi-Recessed | 2.5 | Yes |
| FS SS G2712-RM | 27 x 12 x 8 | Stainless Steel | Semi-Recessed | 4.5 | Yes |
| FS SS G2712-RA | 27 x 12 x 8 | Stainless Steel | Semi-Recessed | 4 | Yes |
