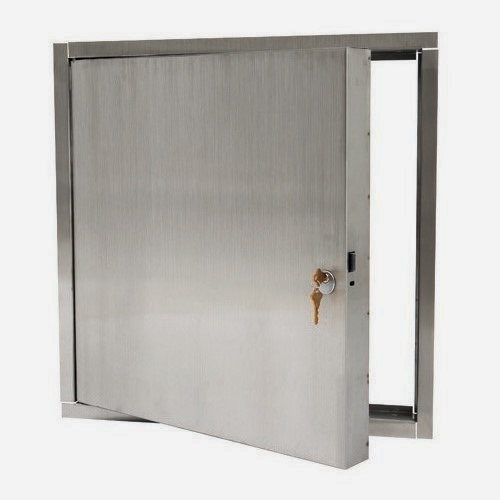

Fire Rated Access Panels for All Ceiling Surfaces - Stainless Steel
Model L-FRC-SS Series
Installation Instructions
Installing L-FRC Access Doors (pdf)
Submittal
Submittal L-FRC Series Access Door (pdf)
Model L-FRC-SS Series
Fire Rated Access Panels for All Ceiling Surfaces - Stainless Steel
ATTENTION:L-FRAPSS Series will be changing to L-FRC-SS Series
Access door frame shall be fabricated from 16 gauge stainless steel and provided with masonry anchors and bolt holes. Access door panel shall be fabricated from 20 gauge, stainless steel. Door shall be filled with 2 inch thick, fire rated insulation, and be welded pan type. Access door shall have spring automatic closer, be self-latching and contain interior latch release. Exterior latching shall be recessed and universal self-latching bolt, operated by either a knurled knob or flush key.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated Insulated Access Panels for All Ceiling Surfaces - Galvannealed Steel [formerly L-FRAP Series]; Stainless Steel [formerly L-FRAPSS Series] | 0 | 449 KB | ||
| | Fire Rated Access Panels for All Ceiling Surfaces - Galvannealed Steel [formerly L-FRAP Series]; Stainless Steel [formerly L-FRAPSS Series] | 0 | 122 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 712 KB |
Specifications
| Options | Galvanized Drywall Bead (option -GB), Mortise Cylinder Lock (option -MLP) |
| Fire Rated | Yes |
| AP Latch | Exterior latch is a dual purpose lock that features a knurled knob and key operation. Interior latch release slide is included enabling door to be opened from the inside. |
| AP Door | 20 gauge Type 304 stainless steel. Door shall be filled with 2 inch thick, fire rated insulation |
| AP Frame | Frame shall be fabricated from 16 gauge stainless steel |
| AP Hinge | Concealed pivoting rod hinge |
| Certifications Listings | Warnock Hersey for 3 hours in ceilings, Warnock Hersey for 2 hours in walls, CAN/ULC S104 for 2 hours in walls |
| Legacy Model | L-FRAPSS |
