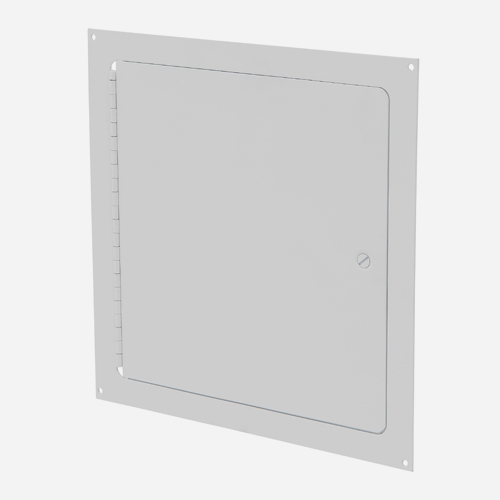

Surface Access Door
Model L-SF Series
Submittal
Submittal L-SF Series Access Door (pdf)
Model L-SF Series
Surface Access Door
This access door features pre-drilled holes in each corner of the frame for an simple surface installation.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Surface Access Door | 0 | 501 KB |
Specifications
| AP Door | 14 gauge galvannealed steel with white primecoat finish |
| AP Frame | 14 gauge galvannealed steel with white primecoat finish |
| AP Frame Depth (inches) | 14 gauge |
| AP Latch | Standard latch is screwdriver operated. |
| AP Hinge | Exposed continuous piano hinge |
| Options | Allen Key Latch (option -AKL), Stainless Steel (option -SS) |
Product Variations
Image | Model ID | Description |
|---|---|---|
| L-SF 8x8 | 8 x 8 inch Surface Access Door |
| L-SF 10x10 | 10 x 10 inch Surface Access Door |
| L-SF 12x12 | 12 x 12 inch Surface Access Door |
| L-SF 14x14 | 14 x 14 inch Surface Access Door |
| L-SF 16x16 | 16 x 16 inch Surface Access Door |
| L-SF 18x18 | 18 x 18 inch Surface Access Door |
| L-SF 22x22 | 22 x 22 inch Surface Access Door |
| L-SF 24x24 | 24 x 24 inch Surface Access Door |
