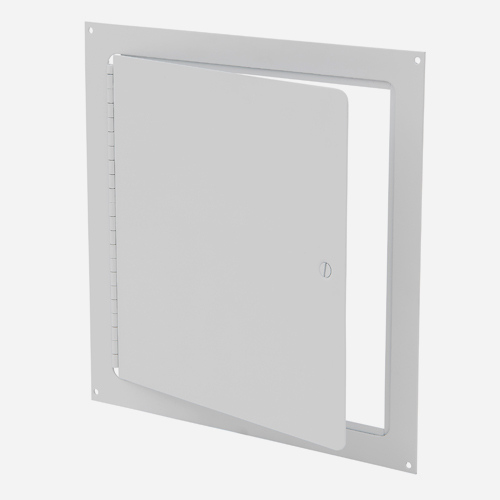

16 x 16 inch Surface Access Door
Model L-SF 16x16
Model L-SF 16x16
16 x 16 inch Surface Access Door
Specifications
| Options | Allen Key Latch (option -AKL), Stainless Steel (option -SS) |
| Outside Trim Flange Height (inches) | 17.625 |
| Outside Trim Flange Width (inches) | 17.625 |
| AP Door Width (inches) | 15.625 |
| AP Door Height (inches) | 15.625 |
| AP Door Width (mm) | 397 |
| AP Door Height (mm) | 397 |
| AP Frame Depth (inches) | 14 gauge |
| AP Number of Latches | 1 |
| AP Latch | Standard latch is screwdriver operated. |
| AP Door | 14 gauge galvannealed steel with white primecoat finish |
| AP Frame | 14 gauge galvannealed steel with white primecoat finish |
| AP Hinge | Exposed continuous piano hinge |
