Removable Panel with Weather Stripping

Model L-WSR Series

Submittal

Submittal L-WSR Series Access Panel (pdf)

Model L-WSR Series

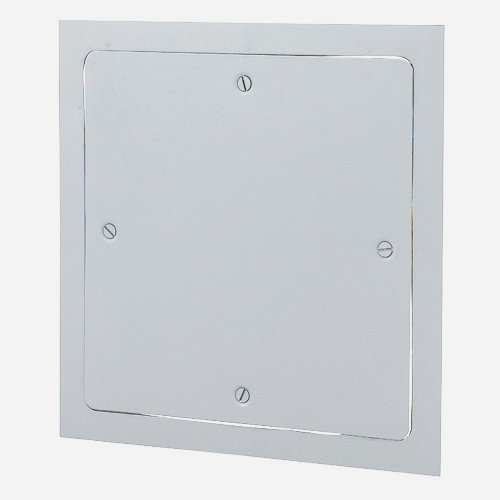

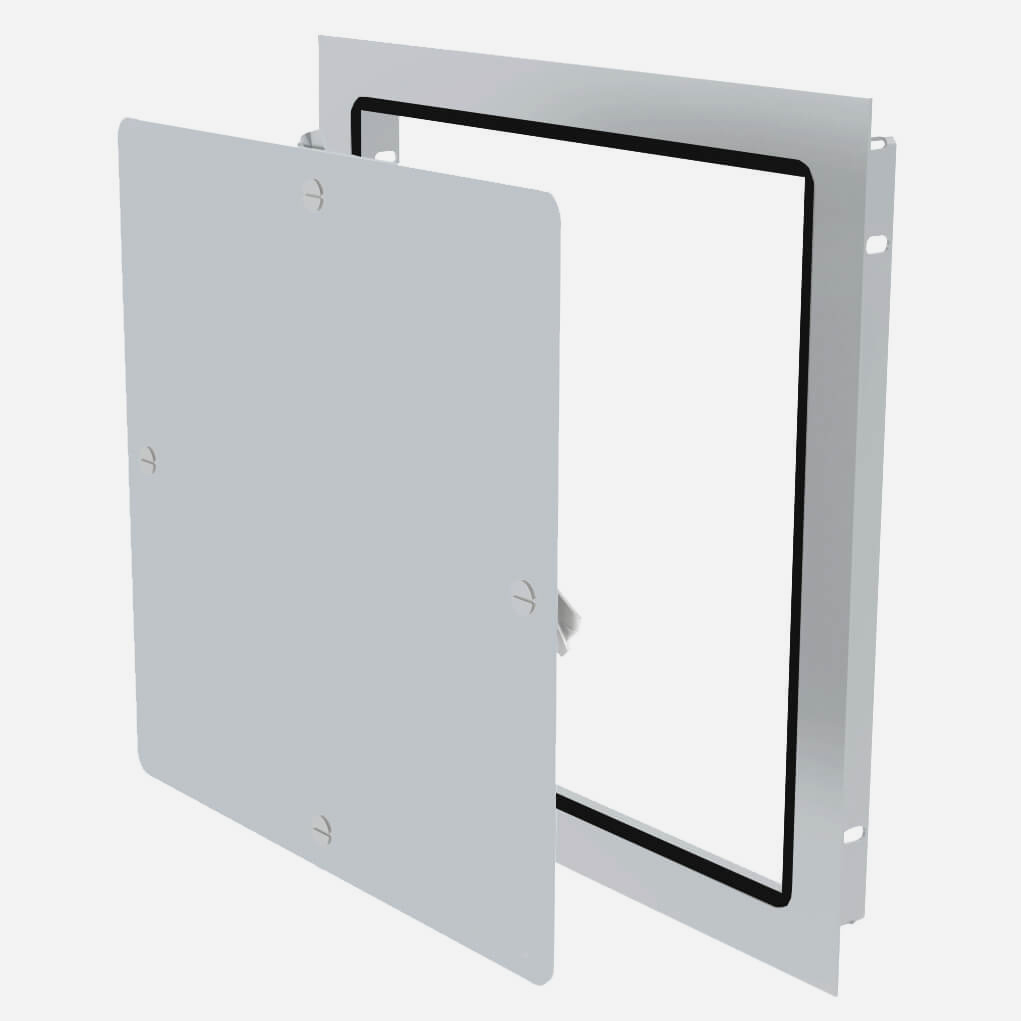

Removable Panel is secured to frame with mutiple screwdriver latches. A gasket is affixed to the frame to provide a weather resistant seal.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

	Resource Type	Title	Description	Answers	File Size	Action
	Submittals	Submittal L-WSR Series Access Panel (pdf)	Removable Panel with Weather Stripping	0	136 KB

Can't find what you are looking for? Get in touch

Shows specifications for standard configuration. Configuration options may change specifications.

AP Door	16 gauge galvannealed steel with white primecoat finish
AP Frame	16 gauge galvannealed steel with white primecoat finish, Neoprene gasketing
AP Latch	Standard latch is screwdriver operated.
Options	Allen Key Latch (option -AKL), Cylinder Lock (option -CL), Cylinder Lock with Dust Shutter (option -CLD), T Handle (option -TH), Stainless Steel (option -SS)

Image	Model ID	Description
	L-WSR 8x8	8 x 8 inch Removable Panel with Weather Stripping
	L-WSR 10x10	10 x 10 inch Removable Panel with Weather Stripping
	L-WSR 12x12	12 x 12 inch Removable Panel with Weather Stripping
	L-WSR 14x14	14 x 14 inch Removable Panel with Weather Stripping
	L-WSR 16x16	16 x 16 inch Removable Panel with Weather Stripping
	L-WSR 18x18	18 x 18 inch Removable Panel with Weather Stripping
	L-WSR 24x24	24 x 24 inch Removable Panel with Weather Stripping
