Shur-Lok Automatic Springbolt Lock Access Door
Shur-Lok Automatic Springbolt Lock Access DoorShur-Lok Automatic Springbolt Lock Access Door
Share this page
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Learn More about this warning

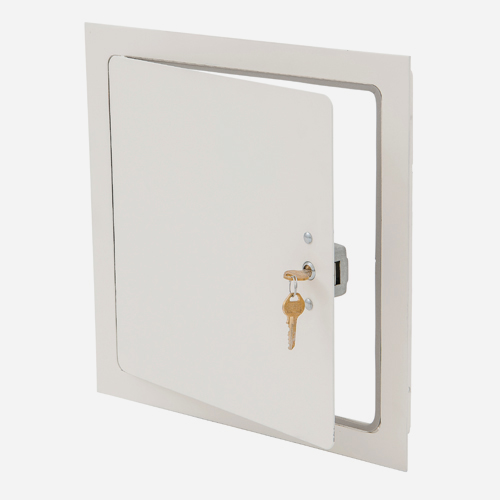

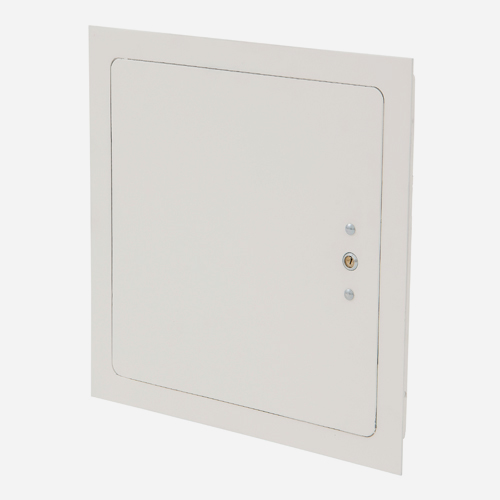

Shur-Lok Automatic Springbolt Lock Access Door

Model Number:  L-SLK Series
Shur-Lok Access Door feature heavy duty galvannnealed steal construction and a automatic springbolt lock to provide moderate security in various public facilities.
Product Function:

These doors are designed for drywall, masonry or concrete construction and provide the security required in today's schools, hospitals, hotels, and correctional institutions.



Regularly Furnished:

Door Panel are fabricated from 14 gauge, galvannealed steel with a white prime coat finish. The door is provided with a 16 gauge vertical reinforcement channel.

Frame is fabricated from 16 gauge, galvannealed steel with a white prime coat finish.

Lock is an automatic springbolt type featuring a precision mechanism. When the door is closed in the locked position, the uniquely designed angled cam lock automatically engages. The key can only be removed when the lock is in the locked position. Doors larger than 16 x 16 inches will have, in addition, screwdriver latches.

Hinge is a concealed continuous stainless steel piano type

Standard Size Available (W x H in inches): 8 x 8, 10 x 10, 12 x 12, 14 x 14, 16 x 16, 18 x 18, 18 x 24, 22 x 22, 24 x 24, 24 x 30, 24 x 36, 30 x 30, 36 x 36


Product Details
  • AP Door:  14 gauge galvannealed steel with white primecoat finish
  • AP Frame:  16 gauge galvannealed steel with white primecoat finish
  • AP Latch:  Single keyed springbolt lock
  • AP Hinge:  Concealed continuous piano hinge
  • Options:  Automatic Spring Door Closer (Option -AS) , Stainless Steel (option -SS)
Loading...
{{ promotion.promotionTypeName }}

{{ product.promotionCatchPhrase }}

Model Number: {{ product.modelNumber }}

{{ product.productName }}


View on {{ product.siteDisplayName }}
Variations for L-SLK Series
Model NumberAP Door Height (inches)AP Door Width (inches)
L-SLK 10x10 10
10
L-SLK 12x12 12
12
L-SLK 14x14 14
14
L-SLK 16x16 16
16
L-SLK 18x18 18
18
L-SLK 18x24 24
18
L-SLK 22x22 22
22
L-SLK 24x24 24
24
L-SLK 24x30 30
24
L-SLK 24x36 36
24
L-SLK 30x30 30
30
L-SLK 36x36 36
36
L-SLK 8x8 8
8
