Surface Mount Valve Box

Model Number:  L-SVB Series

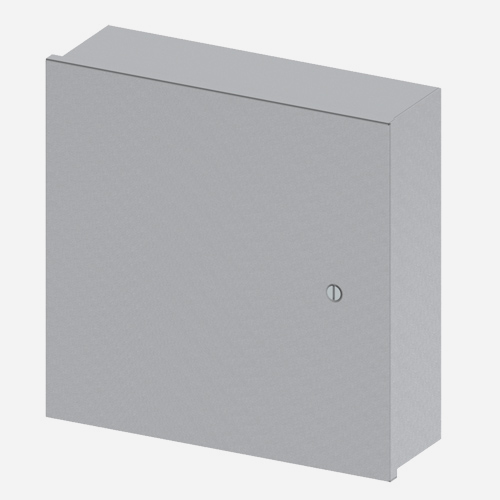

Larsen's provides this fully enclosed surface mount stainless steel box.
Product Function:
The box is designed to house valves or controls which may extend outside of the finished wall.

Regularly Furnished:

Door is fabricated from 16 gauge, type 304 stainless steel with a No. 4 satin finish.

Box is fabricated from 16 gauge, type 304 stainless steel with a No. 4 satin finish on all exposed surfaces. All seams are continuous welded. It is furnished with four 1/4 x 1/2 inch slots on the back for mounting. All anchoring hardware by others.

Hinge is exposed and continuous piano type.

Latch is screwdriver operated.

Standard Available Sizes: (H x W x D in inches) 8 x 8 x 4, 8 x 8 x 6, 8 x 8 x 8, 12 x 12 x 4, 12 x 12 x 6, 12 x 12 x 8


Product Details
  • AP Door:  16 gauge Type 304 stainless steel
  • AP Frame:  16 gauge Type 304 stainless steel
  • AP Latch:  Standard latch is screwdriver operated.
  • AP Hinge:  Exposed continuous piano hinge

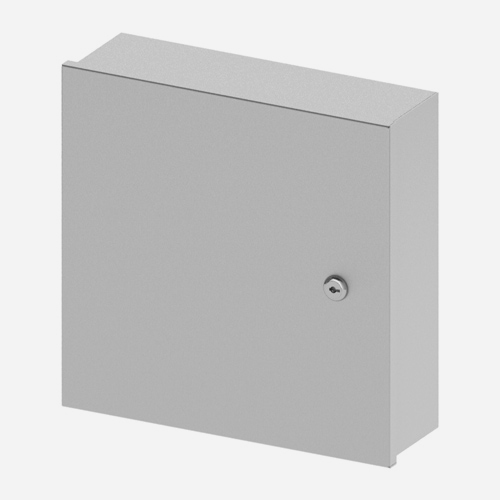

  • Options:  Allen Key Latch (option -AKL) , Cylinder Lock (option -CL) , Cylinder Lock with Dust Shutter (option -CLD)
Loading...
{{ promotion.promotionTypeName }}

{{ product.promotionCatchPhrase }}

Model Number: {{ product.modelNumber }}

{{ product.productName }}


View on {{ product.siteDisplayName }}
Variations for L-SVB Series
Model NumberAP Door Height (inches)AP Door Width (inches)
L-SVB 12x12x4 12.5
12.5
L-SVB 12x12x6 12.5
12.5
L-SVB 12x12x8 12.5
12.5
L-SVB 8x8x4 8.5
8.5
L-SVB 8x8x6 8.5
8.5
L-SVB 8x8x8 8.5
8.5
