Exterior Industrial Hose House

Model 15-58 Series
Model 15-58 Series

Exterior Industrial Hose House

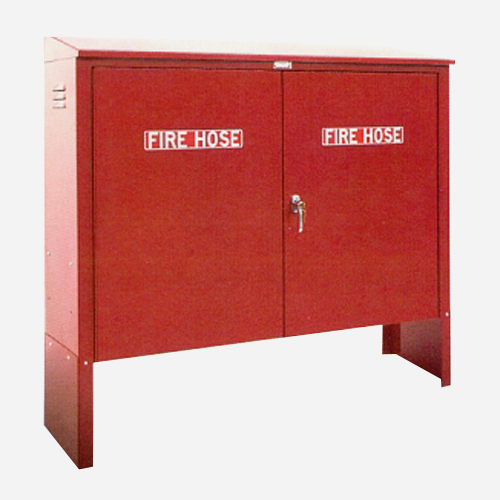

Larsen's 15-58 Outside Hose Houses are intended for use by trained plant personnel or fire departments at industrial facilities where there is an adjacent hydrant or other exterior water supply. These units are designed to accommodate up to 300 feet (91.44 meter) of 2-1/2" fire hose as well as nozzles, fire axes, and other fire fighting equipment, all of which must be specified and purchased separately.

Features
  • Fabricated in cold-rolled steel, galvanized steel or marine-grade aluminum
  • Red exterior grade TGIC (Triglycidyl Isocyanurate) polyester powder coat finish
  • Weatherproof sloping top, front overhang.
  • Double reinforced doors - continuous hinges.
  • Two point lock with chrome handle - locks keyed alike.
  • Louvers provided on both ends for ventilation.
  • Adjustable center shelf.
  • "Fire Hose" decal is standard.
  • Units are factory assembled - legs are packed separately. Available in 12" (305 mm), 18" (457 mm)or 24" (610 mm) lengths.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Literature/Brochures
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)0712 KB

Specifications

Optionsgalvanize steel; 0.063-5052 non-corrosive marine grade aluminum; 12 inch Leg; 18 inch Legs; 24 inch Legs
Overall Heigh42
Overall Width58
Overall Depth15
Fire RatedNo

Models

Typical models are shown below

steel with red powder coat

15-18 (steel) Material: 16 gauge cold roll steel, red exterior grade TGIC (Triglycidyl Isocyanurate) polyester powder coat finish

marine grade aluminum

15-18 (aluminum) Material 0.063-5052 non-corrosive, marine grade aluminum; red exterior grade TGIC polyester powder coat finish

galvanized steel

15-18 (galvanized steel) Material: Galvanized Steel red exterior grade TGIC polyester powder coat finish

For Stand-alone Application: 12 gauge steel legs can be provided. They are available in 12" (305 mm), 18" (457 mm)or 24" (610 mm) lengths.

Product Variations
