HH-100

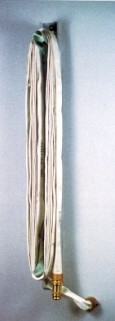

Model HH-100
Model HH-100
HH-100
- Material: 12 gauge cold-rolled steel with zinc plated finish.
- Provides hose storage inside columns or close wall to help prevent damage from mobile equipment.
- Full length of hose is readily available by a swift downward pull of the hose.
- Unit will accommodate lined and unlined hose from 1" to 2½".
- Economical and easy to install.
CONSULT THE CHART TO DETERMINE THE APPROXIMATE REQUIRED SPACING DISTANCE BETWEEN THE UPPER AND LOWER HANGERS.
| TOTAL LOOPS OF HOSE | HOSE LENGTH | ||||
| 50' | 75' | 100' | 125' | 150' | |
| DISTANCE BETWEEN HANGERS | |||||
| 2 | 12' | - | - | - | - |
| 3 | 8' | 12' | - | - | - |
| 4 | 6' | 9' | 12' | - | - |
| 5 | - | 7'6" | 10' | 12' | - |
| 6 | - | 6' | 8'6" | 10' | 12' |
| 7 | - | - | 7' | 9' | 10' |
| 8 | - | - | 6' | 8' | 9' |
