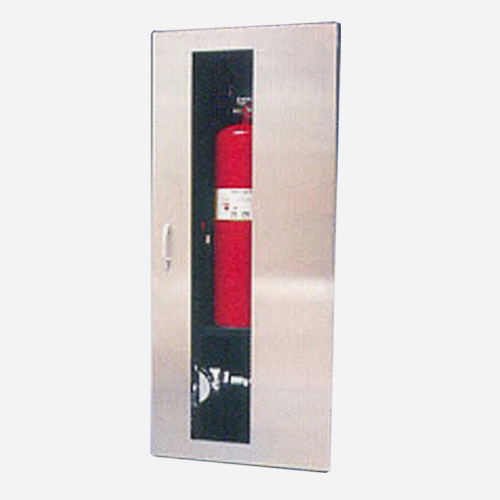

40 x 16 Inch Occult Series Cabinet for Fire Dept Valve and up to 10 Lbs ABC Extinguisher- Brass Door, Recessed, 0.625 Inch Trim
Model B O-4016
Submittal
Submittal Fire Dept Valve Cabinet (pdf)
Model B O-4016
40 x 16 Inch Occult Series Cabinet for Fire Dept Valve and up to 10 Lbs ABC Extinguisher- Brass Door, Recessed, 0.625 Inch Trim
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Larsen Fire Hose Cabinet (may include cabinets with additional valve or storage space for extinguisher) VC 1818, VC 2626, VC 2430, VC 4016, VC 3616 Series | 0 | 508 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 712 KB |
Specifications
| Cabinet Trim Style | Recessed |
| Cabinet Projection | 0.625 |
| Cabinet Door Frame Material | Brass |
| Cabinet Inside Box Height (inches) | 40 |
| Cabinet Inside Box Width (inches) | 16 |
| Cabinet Inside Box Depth (inches) | 8.5 |
| Occult Door Height (inches) | 41.75 |
| Occult Door Width (inches) | 17.75 |
| Outside Trim Flange Height (inches) | 41.5 |
| Outside Trim Flange Width (inches) | 17.5 |
| Rough Opening Height (inches) | 40.5 |
| Rough Opening Width (inches) | 16.5 |
| Rough Opening Depth (inches) | 8.75 |
| Fire Rated | No |
| Cabinet Style | Occult |
| Knockout from Bottom Dim - F | 6 |
| Knockout from Back Dim - G | 4 |
| Cabinet Internal Size (Height x Width x Depth inches) | 40 x 16 x 8.5 |
