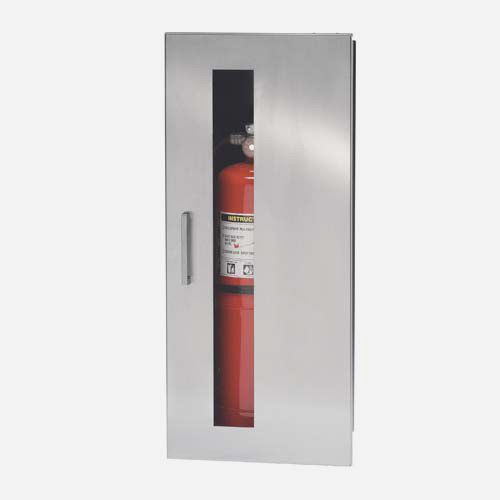

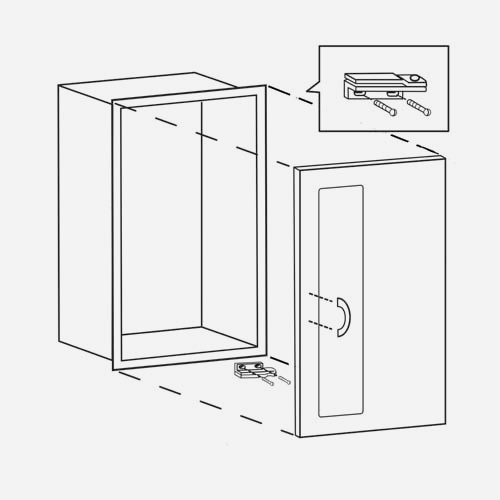

Concealed Hinge Door Cabinets for up to 10 Lbs ABC Fire Extinguisher
Model O-2409 Occult Series
Submittal
2 available
Model O-2409 Occult Series
Concealed Hinge Door Cabinets for up to 10 Lbs ABC Fire Extinguisher
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets | 25 KB | ||
 | | Occult Concealed Hinge Door Cabinets for Fire Extinguisher FS-O-2409, FS-O-3216 Series | 325 KB | ||
| | Occult Concealed Hinge Door Cabinets for Fire Extinguisher O-2409, O-3216 Series | 303 KB | ||
| | MGI Brands Flyer (pdf) | 712 KB | ||
| | Larsen's Brochure [2016 Edition]Fire Extinguishers and Brackets, Fire Rated Extinguisher Cabinets — Flame-Shield® Option, Medallion, Architectural, Gemini, Cameo, Occult Series Cabinets; Detention Cabinets, Fire Blanket Cabinets, Exclusive Options | 1 MB |
Specifications
| Cabinet Style | Occult |
| Larsen's Fire Extinguishers | MP2½, MP5, MP5-A, MP6, MP10, DC2½, DC5, DC6, DC10, CD5, HT2½, HT5 |
Product Variations
Model ID | Size | Door and Frame Material | Trim Style | Cabinet Projection | Fire-Rated |
|---|---|---|---|---|---|
| AL O-2409 | 24 x 9.5 x 6 | Aluminum | Recessed | 0.625 | No |
| SS O-2409 | 24 x 9.5 x 6 | Stainless Steel | Recessed | 0.625 | No |
| B O-2409 | 24 x 9.5 x 6 | Brass | Recessed | 0.625 | No |
| BZ O-2409 | 24 x 9.5 x 6 | Bronze | Recessed | 0.625 | No |
| FS SS O-2409 | 24 x 9.5 x 6 | Stainless Steel | Recessed | 0.625 | Yes |
| FS B O-2409 | 24 x 9.5 x 6 | Brass | Recessed | 0.625 | Yes |
| FS BZ O-2409 | 24 x 9.5 x 6 | Bronze | Recessed | 0.625 | Yes |
| FS AL O-2409 | 24 x 9.5 x 6 | Aluminum | Recessed | 0.625 | Yes |
| FS O-2409 | 24 x 9.5 x 6 | Steel | Recessed | 0.625 | Yes |
| O-2409 | 24 x 9.5 x 6 | Steel | Recessed | 0.625 | No |
