Cabinets for up to Two 20 Lbs ABC Fire Extinguishers
Model 2720 Architectural Series
Submittal
2 available

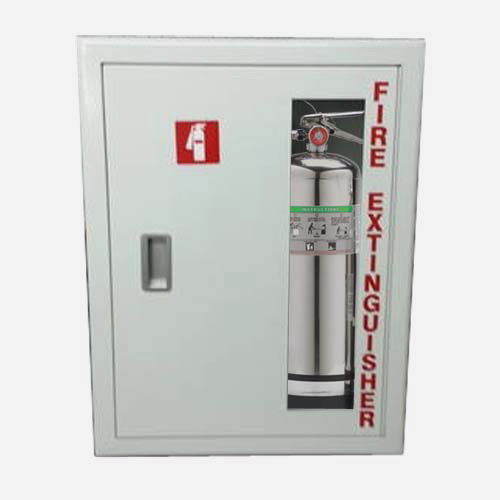

Model 2720 Architectural Series
Cabinets for up to Two 20 Lbs ABC Fire Extinguishers
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets | 25 KB | ||
 | | Fire-Rated Architectural Traditional Fire Extinguisher Cabinets FS 2409,FS 2712, FS 2720, FS 3612 Series; Fire-Rated Medallion Series Brass Door Fire Extinguisher Cabinet FS B2409, FS B2712 Series | 2 MB | ||
| | Architectural Traditional Fire Extinguisher Cabinets 2409, 2712, 2720, 3612 Series; Medallion Series Brass Door Fire Extinguisher Cabinet B2409, B2712 Series | 2 MB | ||
| | Larsen's Brochure [2016 Edition]Fire Extinguishers and Brackets, Fire Rated Extinguisher Cabinets — Flame-Shield® Option, Medallion, Architectural, Gemini, Cameo, Occult Series Cabinets; Detention Cabinets, Fire Blanket Cabinets, Exclusive Options | 1 MB | ||
| | MGI Brands Flyer (pdf) | 712 KB |
Specifications
| Cabinet Style | Architectural |
| Larsen's Fire Extinguishers | MP10, DC10, MP20, DC20, CD5, CD10, WC-6L, HT11, HT15½ |
Product Variations
Model ID | Size | Door and Frame Material | Trim Style | Cabinet Projection | Fire-Rated |
|---|---|---|---|---|---|
| 2720-R | 27 x 20 x 8 | Steel | Recessed | 0.3125 | No |
| 2720-RK | 27 x 20 x 8 | Steel | Semi-Recessed | 1.25 | No |
| 2720-RL | 27 x 20 x 8 | Steel | Semi-Recessed | 2.5 | No |
| 2720-RM | 27 x 20 x 8 | Steel | Semi-Recessed | 4.5 | No |
| 2720-RT | 27 x 20 x 8 | Steel | Trimless | — | No |
| 2720-SM | 30.5 x 23.5 x 8.5 | Steel | Surface Mount | — | No |
| 2720-RA | 27 x 20 x 8 | Steel | Semi-Recessed | 4 | No |
| AL2720-R | 27 x 20 x 8 | Aluminum | Recessed | 0.3125 | No |
| AL2720-RK | 27 x 20 x 8 | Aluminum | Semi-Recessed | 1.25 | No |
| AL2720-RL | 27 x 20 x 8 | Aluminum | Semi-Recessed | 2.5 | No |
| AL2720-RM | 27 x 20 x 8 | Aluminum | Semi-Recessed | 4.5 | No |
| AL2720-RT | 27 x 20 x 8 | Aluminum | Trimless | — | No |
| AL2720-SM | 30.5 x 23.5 x 8.5 | Aluminum | Surface Mount | — | No |
| AL2720-RA | 27 x 20 x 8 | Aluminum | Semi-Recessed | 4 | No |
| SS2720-R | 27 x 20 x 8 | Stainless Steel | Recessed | 0.3125 | No |
| SS2720-RK | 27 x 20 x 8 | Stainless Steel | Semi-Recessed | 1.25 | No |
| SS2720-RL | 27 x 20 x 8 | Stainless Steel | Semi-Recessed | 2.5 | No |
| SS2720-RM | 27 x 20 x 8 | Stainless Steel | Semi-Recessed | 4.5 | No |
| SS2720-RT | 27 x 20 x 8 | Stainless Steel | Trimless | — | No |
| SS2720-SM | 30.5 x 23.5 x 8.5 | Stainless Steel | Surface Mount | — | No |
| SS2720-RA | 27 x 20 x 8 | Stainless Steel | Semi-Recessed | 4 | No |
| FS 2720-R | 27 x 20 x 8 | Steel | Recessed | 0.3125 | Yes |
| FS 2720-RK | 27 x 20 x 8 | Steel | Semi-Recessed | 1.25 | Yes |
| FS 2720-RL | 27 x 20 x 8 | Steel | Semi-Recessed | 2.5 | Yes |
| FS 2720-RM | 27 x 20 x 8 | Steel | Semi-Recessed | 4.5 | Yes |
| FS 2720-RA | 27 x 20 x 8 | Steel | Semi-Recessed | 4 | Yes |
| FS AL2720-R | 27 x 20 x 8 | Aluminum | Recessed | 0.3125 | Yes |
| FS AL2720-RK | 27 x 20 x 8 | Aluminum | Semi-Recessed | 1.25 | Yes |
| FS AL2720-RL | 27 x 20 x 8 | Aluminum | Semi-Recessed | 2.5 | Yes |
| FS AL2720-RM | 27 x 20 x 8 | Aluminum | Semi-Recessed | 4.5 | Yes |
| FS AL2720-RA | 27 x 20 x 8 | Aluminum | Semi-Recessed | 4 | Yes |
| FS SS2720-R | 27 x 20 x 8 | Stainless Steel | Recessed | 0.3125 | Yes |
| FS SS2720-RK | 27 x 20 x 8 | Stainless Steel | Semi-Recessed | 1.25 | Yes |
| FS SS2720-RL | 27 x 20 x 8 | Stainless Steel | Semi-Recessed | 2.5 | Yes |
| FS SS2720-RM | 27 x 20 x 8 | Stainless Steel | Semi-Recessed | 4.5 | Yes |
| FS SS2720-RA | 27 x 20 x 8 | Stainless Steel | Semi-Recessed | 4 | Yes |
