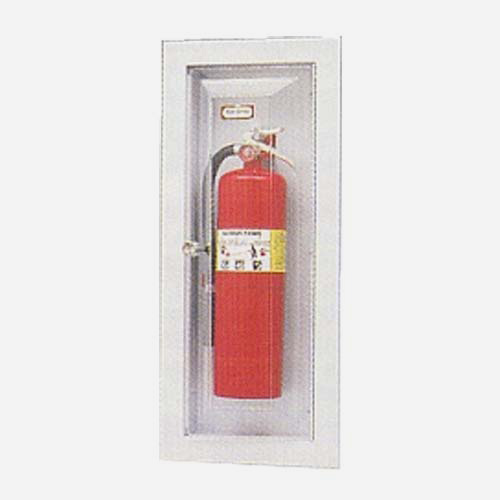

Bevel Edge Bubble Door Cabinets for up to 10 Lbs ABC Fire Extinguisher
Model V-2709 Vista Series
Submittal
Submittal Vista Series Fire Extinguisher Cabinet (pdf)
Model V-2709 Vista Series
Bevel Edge Bubble Door Cabinets for up to 10 Lbs ABC Fire Extinguisher
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets | 25 KB | ||
 | | Vista Bevel Edge Bubble Frameless Door Cabinets for Fire Extinguishers V-2709, V-3012 Series | 204 KB | ||
| | Larsen's Brochure [2016 Edition]Fire Extinguishers and Brackets, Fire Rated Extinguisher Cabinets — Flame-Shield® Option, Medallion, Architectural, Gemini, Cameo, Occult Series Cabinets; Detention Cabinets, Fire Blanket Cabinets, Exclusive Options | 1 MB | ||
| | MGI Brands Flyer (pdf) | 712 KB |
Specifications
| Cabinet Style | Vista |
| Larsen's Fire Extinguishers | MP2½, MP5, MP5-A, MP6, MP10, DC2½, DC5, DC6, DC10, HT2½, HT5 |
Product Variations
Model ID | Size | Door and Frame Material | Trim Style | Cabinet Projection | Fire-Rated |
|---|---|---|---|---|---|
| V-2709 | 27 x 9.5 x 4 | Steel | Recessed | 0.3125 | No |
| V-2709-SM | 30.5 x 13 x 4 | Steel | Surface Mount | --- | No |
| AL V-2709 | 27 x 9.5 x 4 | Aluminum | Recessed | 0.3125 | No |
| AL V-2709-SM | 30.5 x 13 x 4 | Aluminum | Surface Mount | --- | No |
| SS V-2709 | 27 x 9.5 x 4 | Stainless Steel | Recessed | 0.3125 | No |
| SS V-2709-SM | 30.5 x 13 x 4 | Stainless Steel | Surface Mount | --- | No |
| FS V-2709 | 27 x 9.5 x 4 | Steel | Recessed | 0.3125 | Yes |
| FS AL V-2709 | 27 x 9.5 x 4 | Aluminum | Recessed | 0.3125 | Yes |
| FS SS V-2709 | 27 x 9.5 x 4 | Stainless Steel | Recessed | 0.3125 | Yes |
