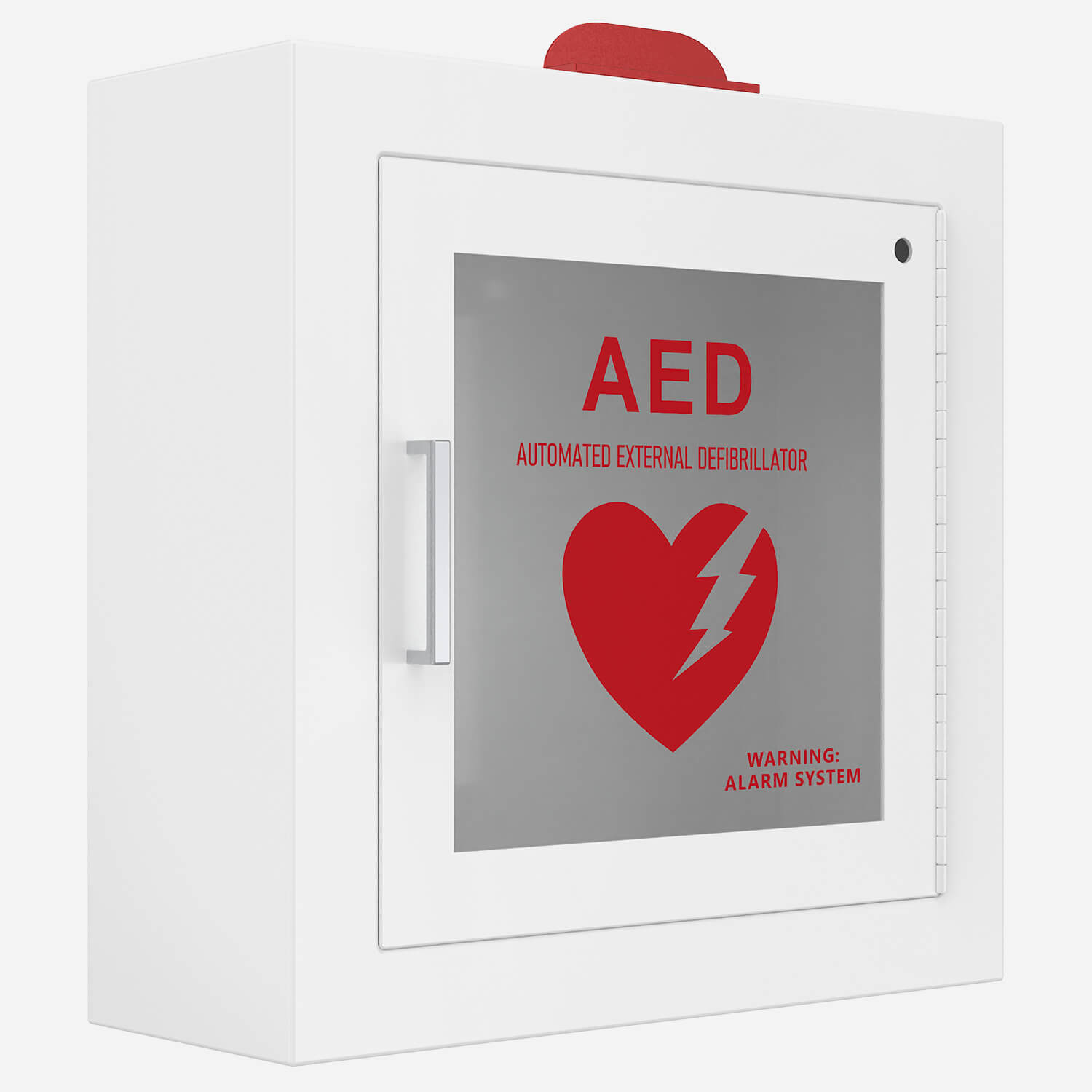

14 x 14 inch Cabinet for Automated External Defibrillator
14 x 14 inch Cabinet for Automated External Defibrillator

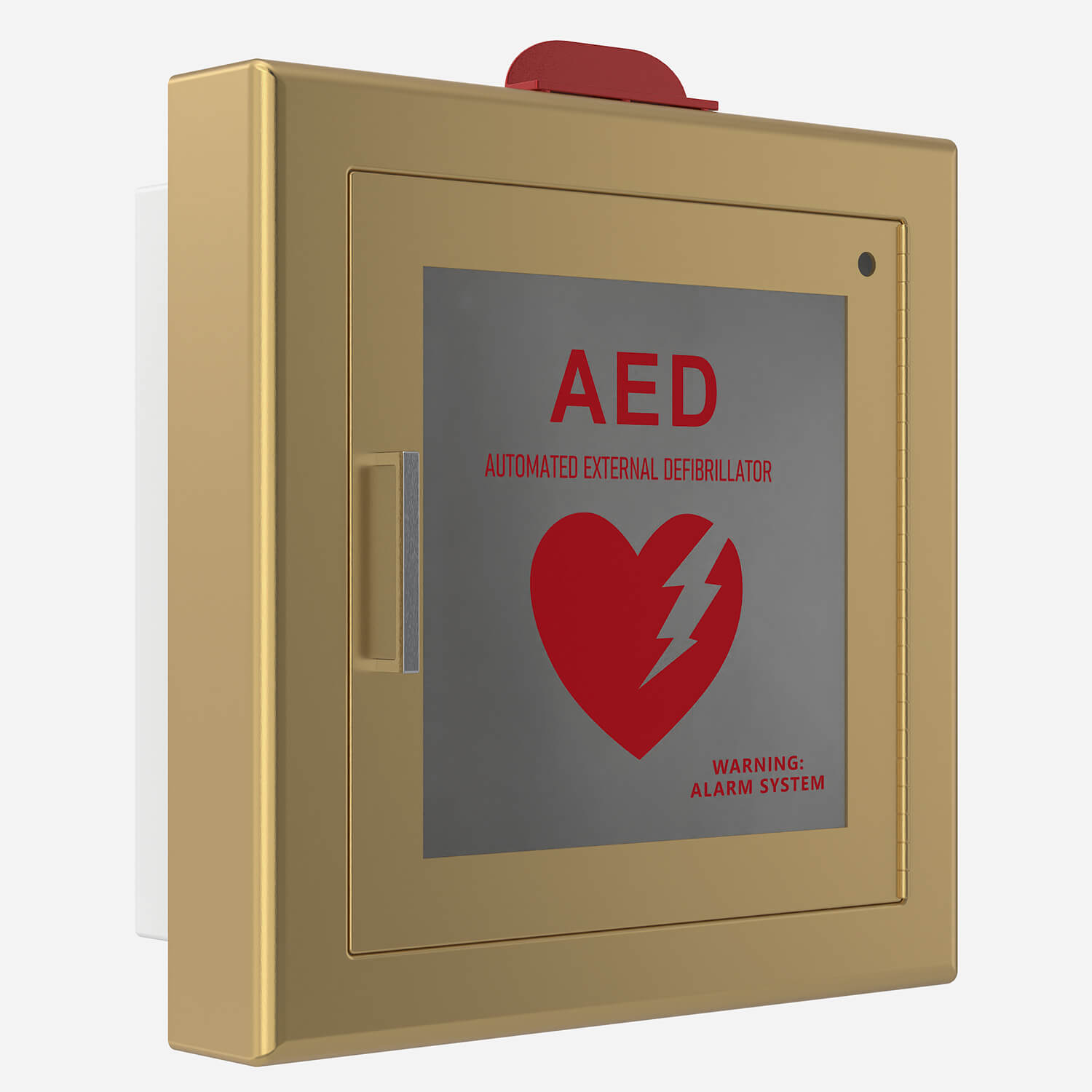

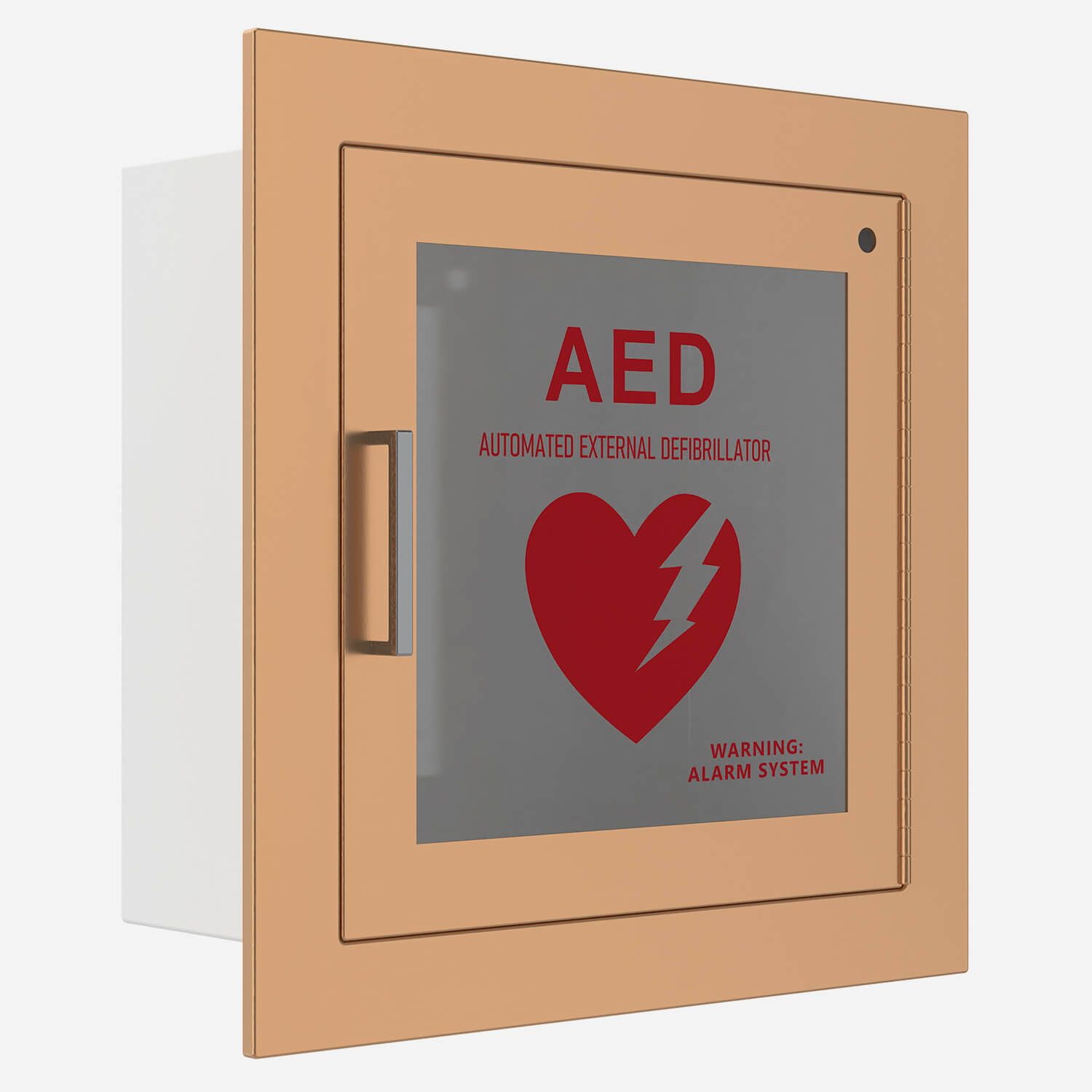

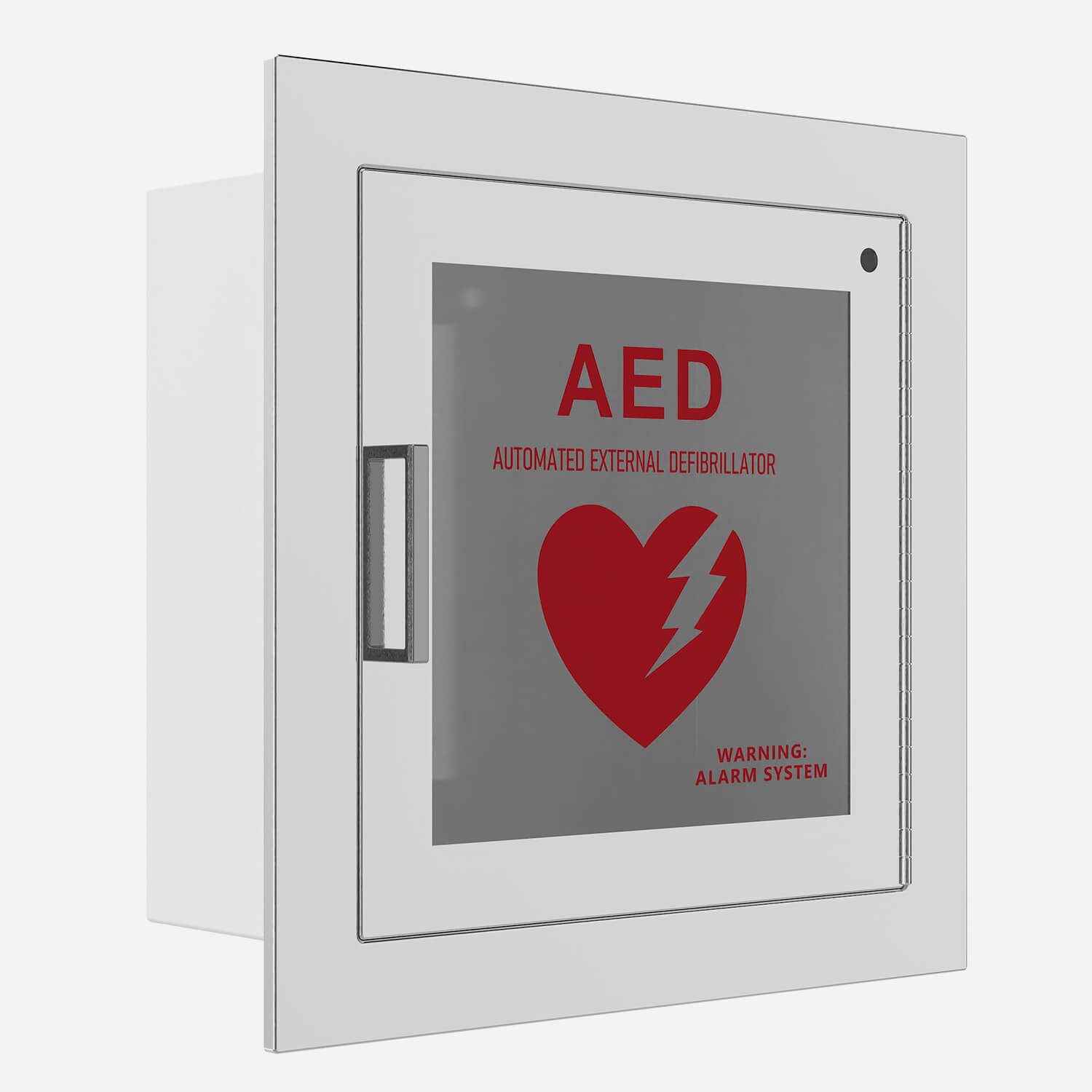

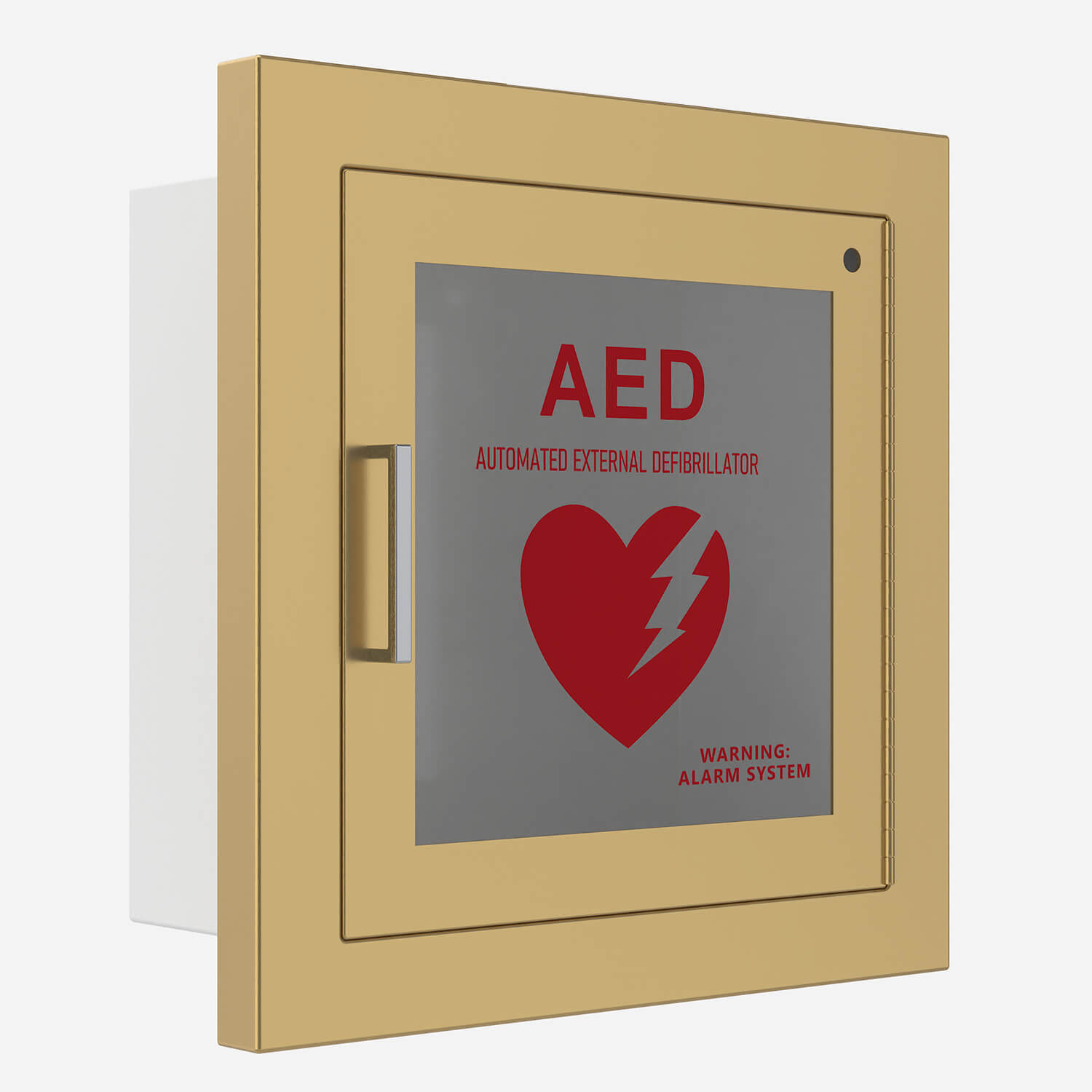

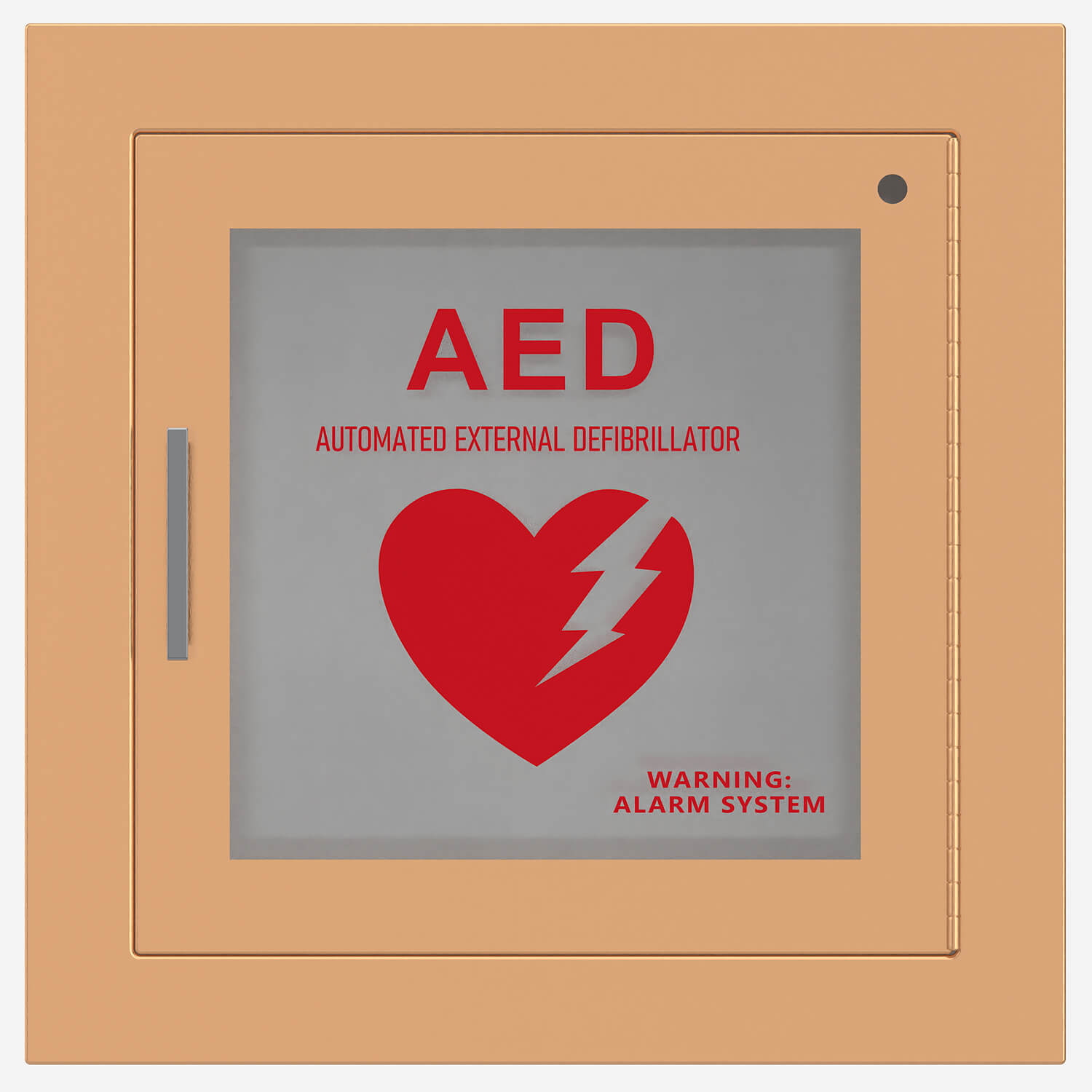

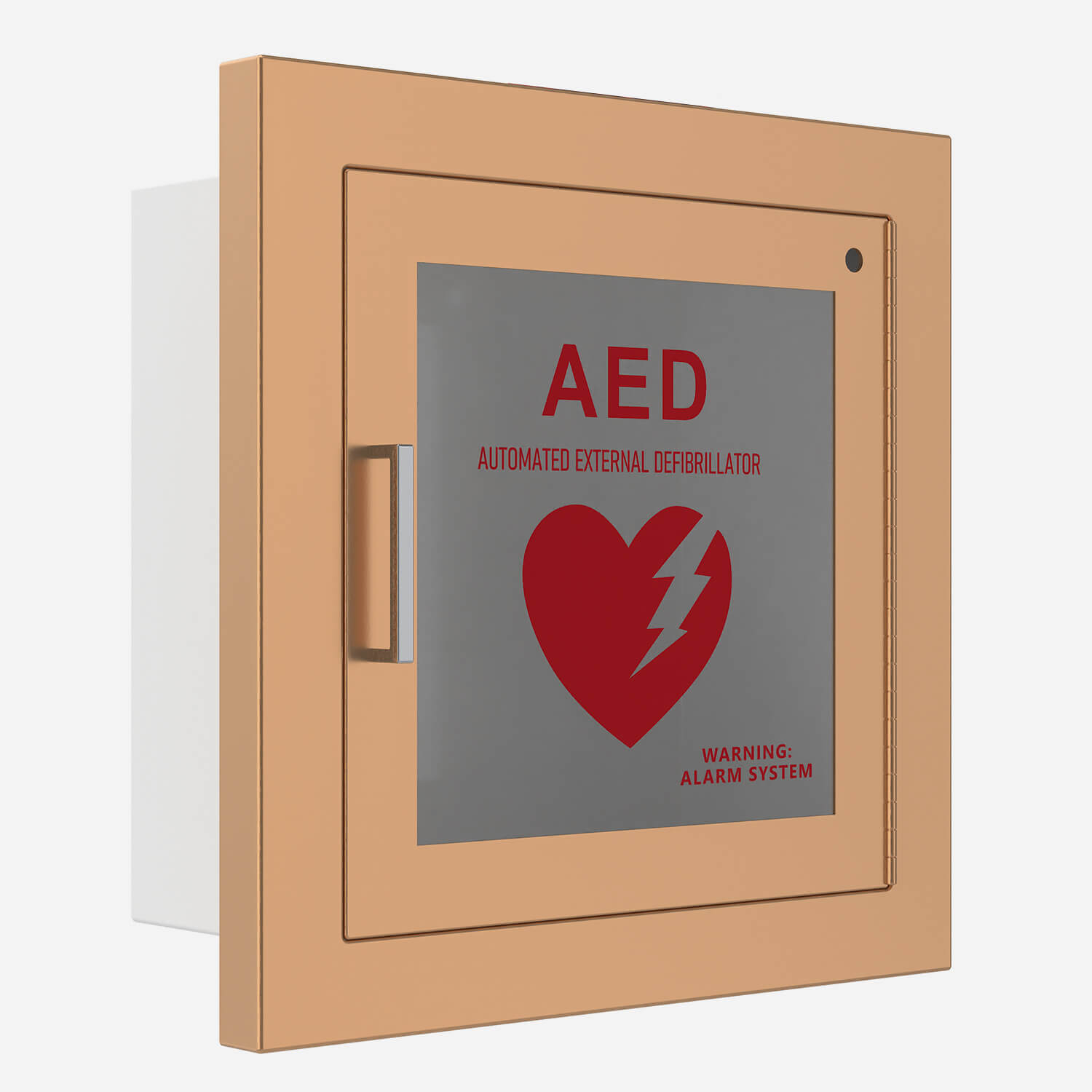

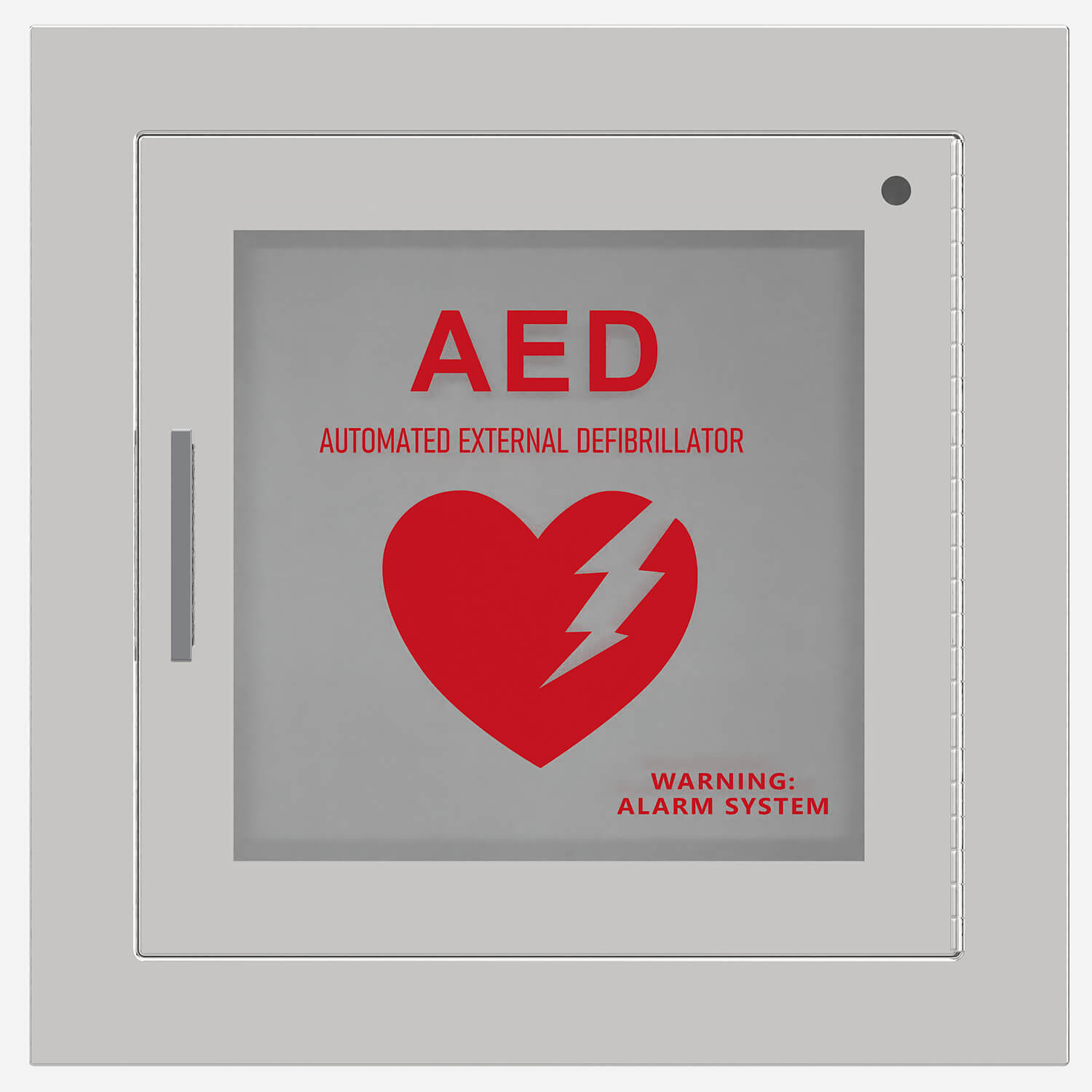

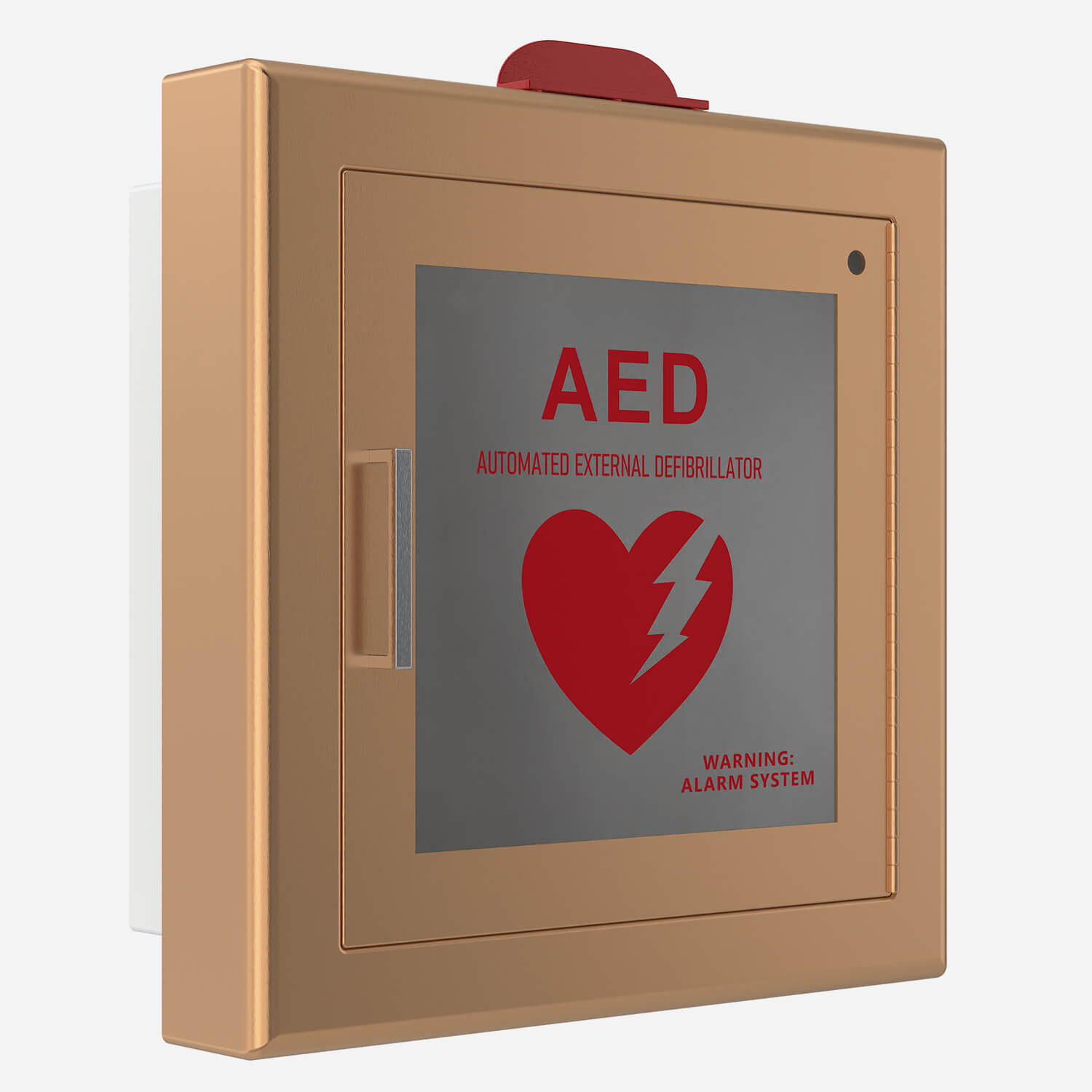

Larsen's Manufacturing can supply a 14 x 14 inch (nominal size) cabinet, large enough to house an Automated External Defibrillator (Defibrillator is not supplied).
All recessed and semi-recessed cabinets and surface-mounted steel cabinets have a heavy gauge, white powder coated box. Surface-mounted cabinets with stainless steel door and trim have a box construction entirely of 304 stainless steel with a #4 finish.
Steel and stainless steel cabinets have a full 1/2” thick Pan door. Trims and doors feature one piece construction with satin finish pull handle, continuous matching hinge, and self-adjusting roller catch. White powder coat finish is standard for steel units. Stainless steel cabinets have a #4 finish, 304 stainless steel. Solid brass and solid bronze trims and doors are one piece, with a standard satin, brushed finish and clear protective coating.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Larsen's Automated External Defibrillator Cabinet [1414-R, 1414-RK, 1414-RD,1414-SM SS1414-R, SS1414-RK, SS1414-RD SS1414-SM, B1414-R, B1414-RK, B1414-RD, BZ1414-R, BZ1414-RK, BZ1414-RD] | 0 | 4 MB |
Specifications
| Cabinet Trim Style | Recessed, Semi-Recessed, Surface Mount |
| Cabinet Door Frame Material | Steel, Stainless Steel, Brass, Bronze |
| Cabinet Inside Box Height (inches) | 14, 17 |
| Cabinet Inside Box Width (inches) | 14, 17 |
| Cabinet Inside Box Depth (inches) | 6.75 |
| Outside Trim Flange Height (inches) | 17.5 |
| Outside Trim Flange Width (inches) | 17.5 |
| Cabinet Style | Architectural, Medallion |
| Fire Rated | No |
| Cabinet Internal Size (Height x Width x Depth inches) | 14 x 14 x 6.75, 17 x 17 x 6.75 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | ALARM | Vigilante Alarm | ||
 | Option Duo Horizontal Door | Duo Horizontal Door for Cabinets | ||
 | Option Duo Vertical Door | Duo Vertical Door for Cabinets | ||
 | Option Full Glass Door | Full Glass Door for Cabinets | ||
 | Option LARSEN-LOC | Larsen-Loc® Door Locking System | ||
 | Option RH | Recessed Handle | ||
 | Option Solid Door | Solid Door for Cabinets |
