Member of Morris Group International

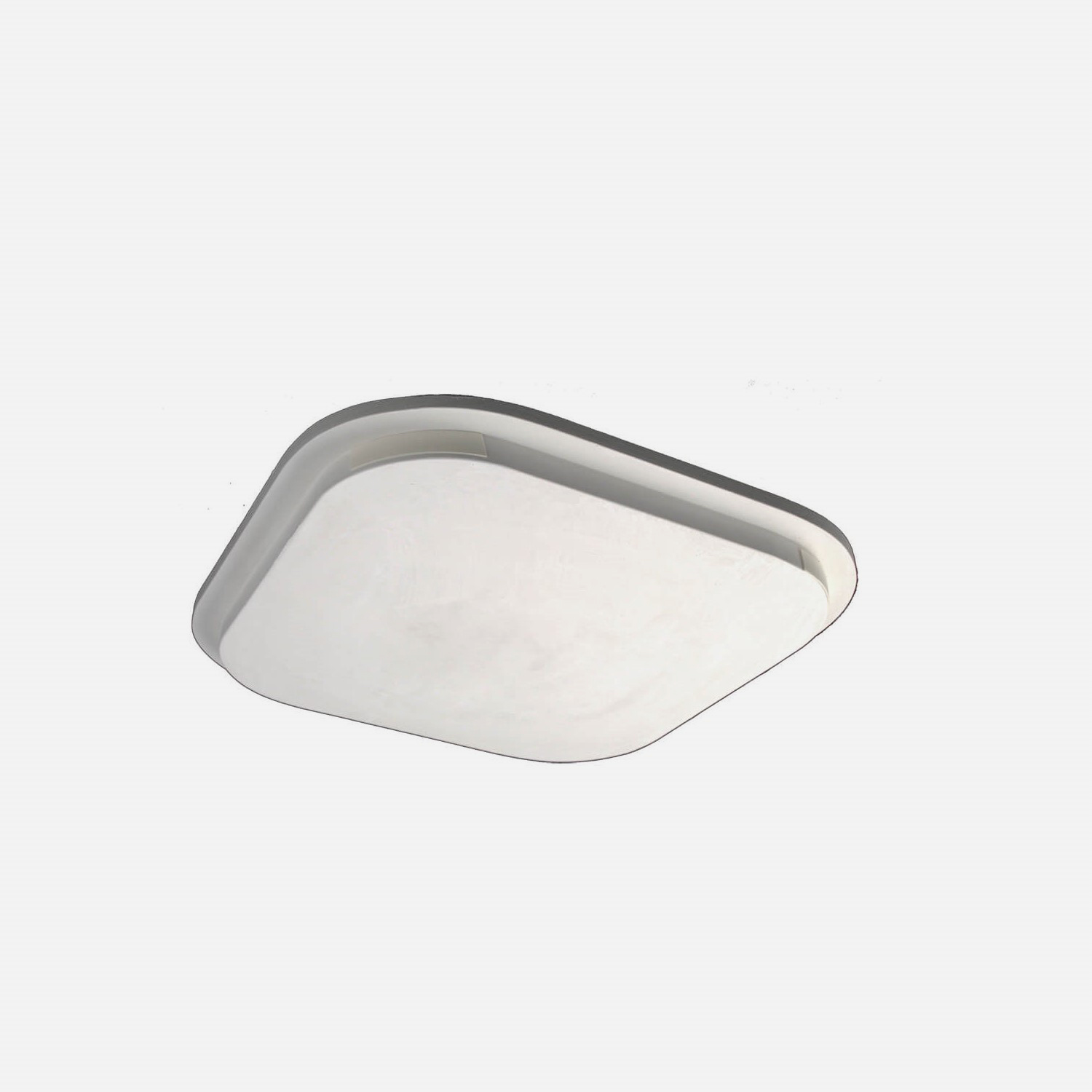

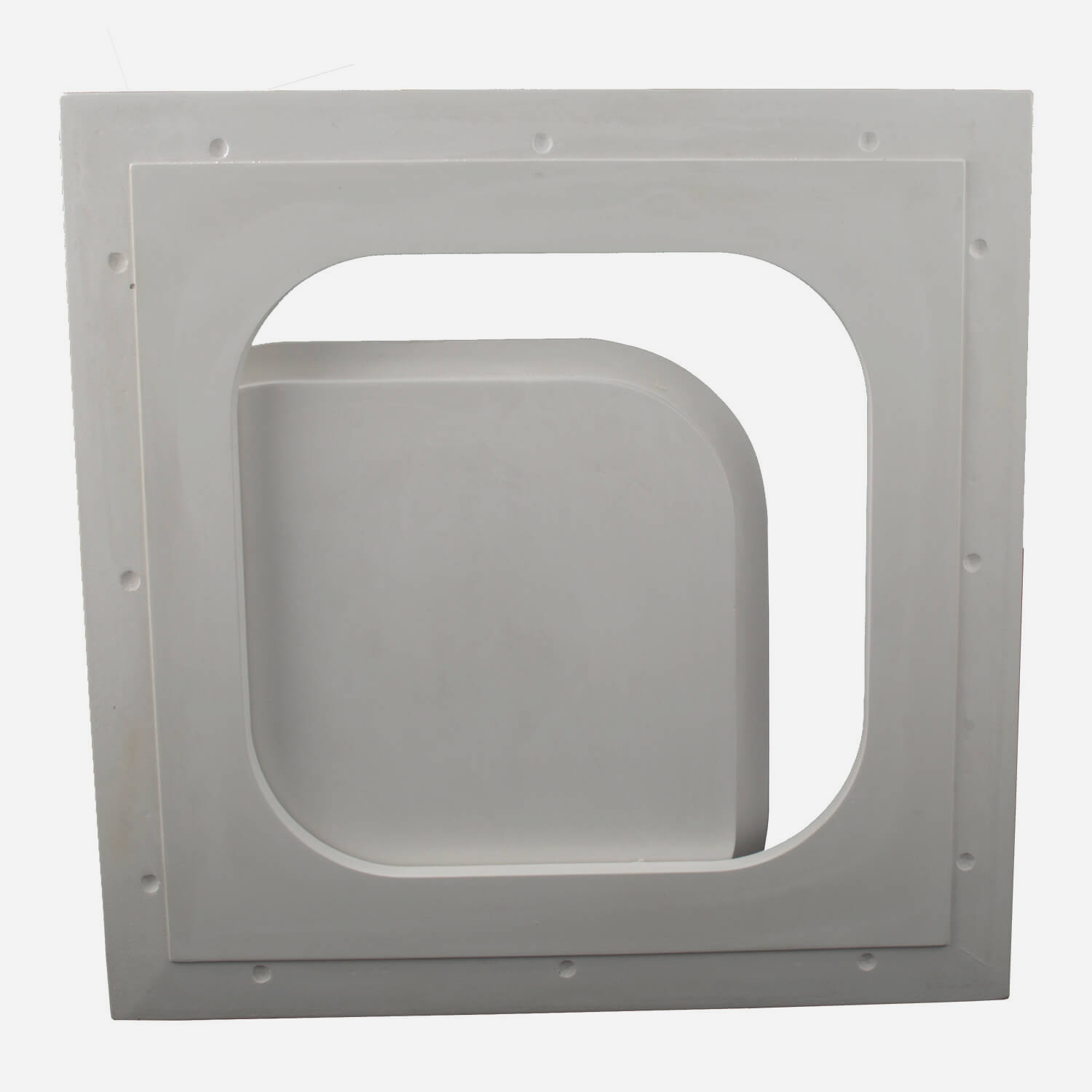

Gypsum Fiberglass Access Panel-Frame
Model L-GFG Series
Submittal
Submittal L-GFG Access Panel (pdf)
Model L-GFG Series
Gypsum Fiberglass Access Panel-Frame
Doors are designed to be architecturally pleasing with a design which allows the door and frame to blend seamlessly with the gypsum ceiling. With a tapered edge for joint tape, they are easily textured, light weight and will not crack or shrink.
Regularly Furnished
Door is fabricated from glass reinforced gypsum.

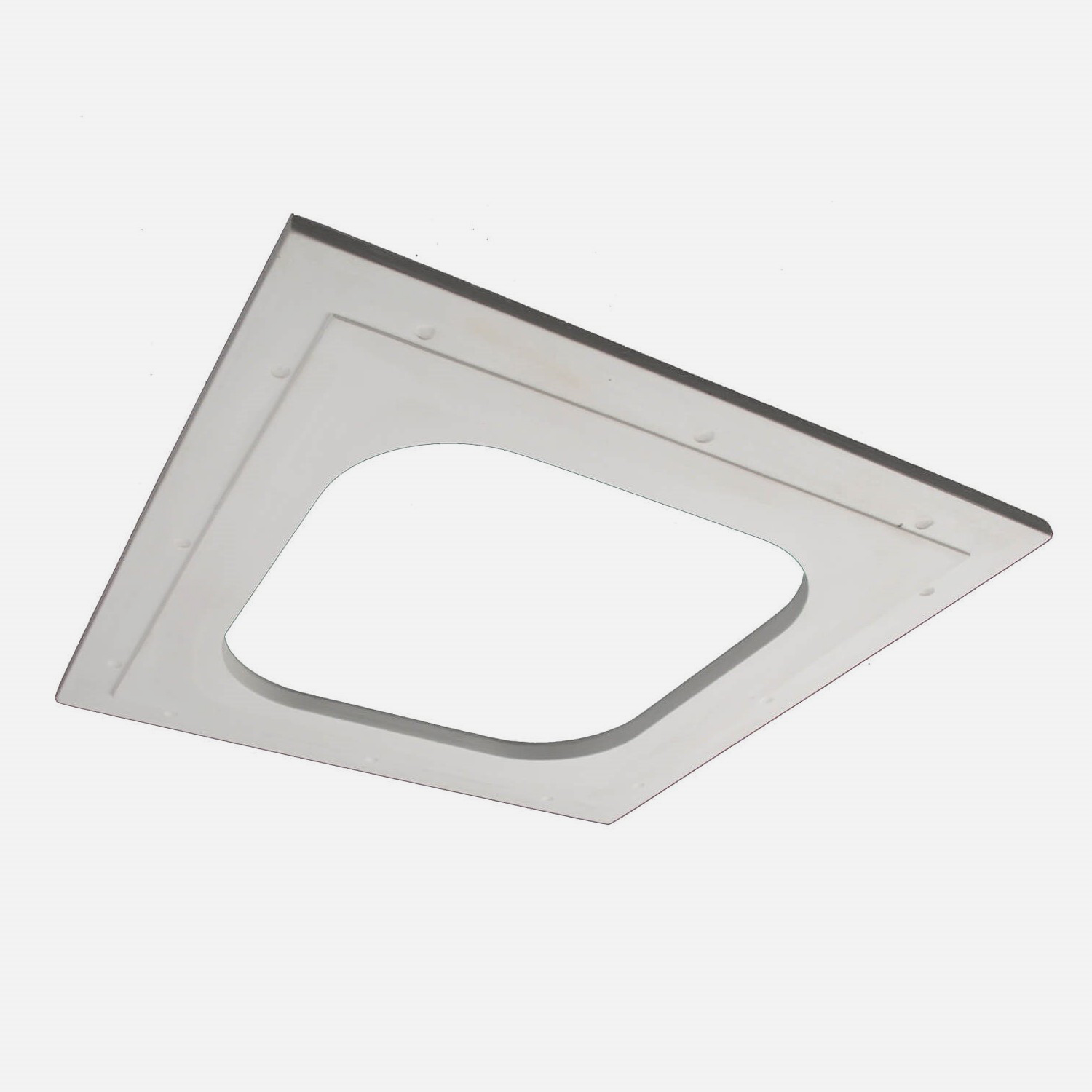

Frame is fabricated from glass reinforced gypsum.

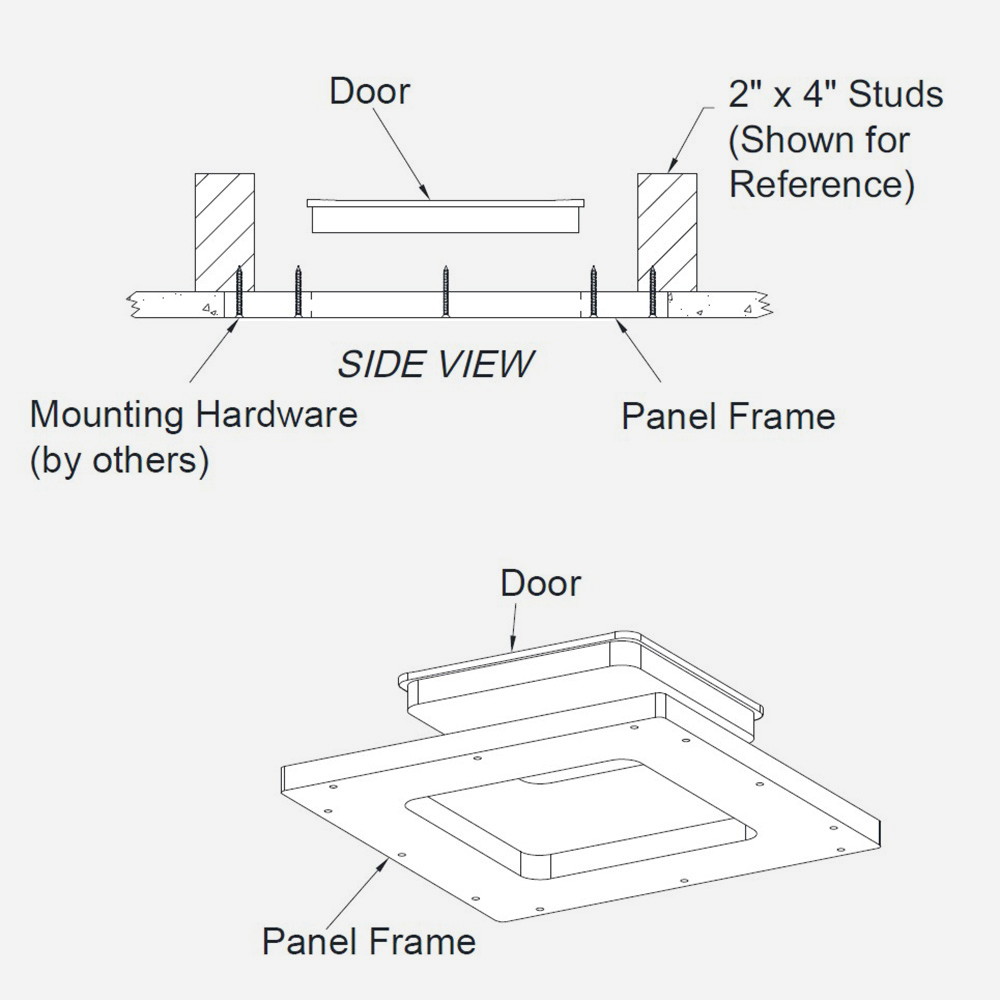

Flange has depressions for screw placement and is tapered for joint-compound application.
Standard Sizes: 9" sq panel with 15" sq frame, 12" sq panel with 18" frame, 16" panel with 22" frame, 18" panel with 24" frame, 22" x 30" panel with 28" x 36" frame, 24" panel with 30" frame, 30" panel with 36" frame
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Gypsum Fiberglass Access Panel/Frame [9” sq panel with 15” sq frame, 12" sq panel with 18" frame. 16" panel with 22” frame, 18" panel with 24” frame, 22" x 30" panel with 28” x 36” frame, 24" panel with 30” frame, 30" panel with 36" frame] | 0 | 139 KB |
Specifications
| AP Door | Glass-reinforced gypsum |
| AP Frame | Glass-reinforced gypsum |
| Fire Rated | No |
Product Variations
Image | Model ID | Description |
|---|---|---|
| L-GFG 9x9 | 9" Square Door Gypsum Fiberglass Panel-Frame |
| L-GFG 12x12 | 12" Square Door Gypsum Fiberglass Panel-Frame |
| L-GFG 16x16 | 16" Square Door Gypsum Fiberglass Panel-Frame |
| L-GFG 18x18 | 18" Square Door Gypsum Fiberglass Panel-Frame |
| L-GFG 22x30 | 22" x 30" Door Gypsum Fiberglass Panel-Frame |
| L-GFG 24x24 | 24" Square Door Gypsum Fiberglass Panel-Frame |
| L-GFG 30x30 | 30" Square Door Gypsum Fiberglass Panel-Frame |
