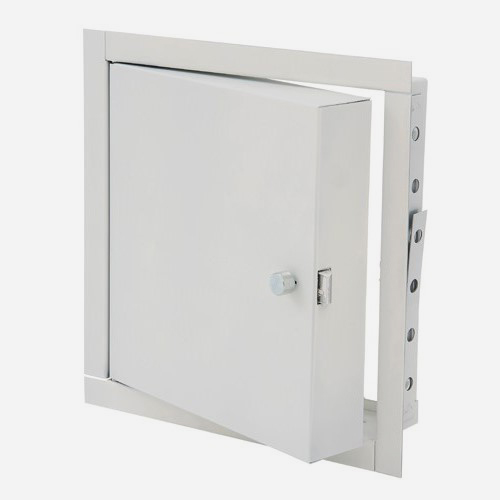

Fire Rated Access Panels for All Ceiling Surfaces - Steel
Model L-FRC Series
Installation Instructions
Installing L-FRC Access Doors (pdf)
Submittal
Submittal L-FRC Series Access Door (pdf)
Model L-FRC Series
Fire Rated Access Panels for All Ceiling Surfaces - Steel
ATTENTION: L-FRAP Series will be changing to L-FRC Series
Frame shall be 16 gauge cold rolled steel with 1 inch flange. Door shall be fabricated from 20 gauge cold rolled steel, insulated sandwich type construction. Door shall be self-latching with automatic closer and interior latch release mechanism. Hinge shallbe flush continuous piano type. Latch(es) shall be a knurled knob/key operated latch bolt (optional: preparation to receive 1.125 inch mortise cylinder cylinder provided by Larsens or others). Finish shall be baked on powder coat (optional: galvanized bonderized steel or stainless steel with #4 satin polish finish).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated Insulated Access Panels for All Ceiling Surfaces - Galvannealed Steel [formerly L-FRAP Series]; Stainless Steel [formerly L-FRAPSS Series] | 0 | 449 KB | ||
| | Fire Rated Access Panels for All Ceiling Surfaces - Galvannealed Steel [formerly L-FRAP Series]; Stainless Steel [formerly L-FRAPSS Series] | 0 | 122 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 712 KB |
Specifications
| Fire Rated | Yes |
| AP Latch | Knurled knob/key operated latch bolt |
| AP Door | 20 gauge cold rolled steel |
| AP Frame | 16 gauge cold rolled steel with 1 inch flange |
| AP Hinge | Flush continuous piano hinge |
| AP Options | mortise cylinder preparation (cylinder provided by Larsens or others), Handle lockable on exterior side |
| Certifications Listings | Warnock-Hersey for 3 hours in ceiling, UL for 1.5 hours in walls |
| Legacy Model | L-FRAP |
