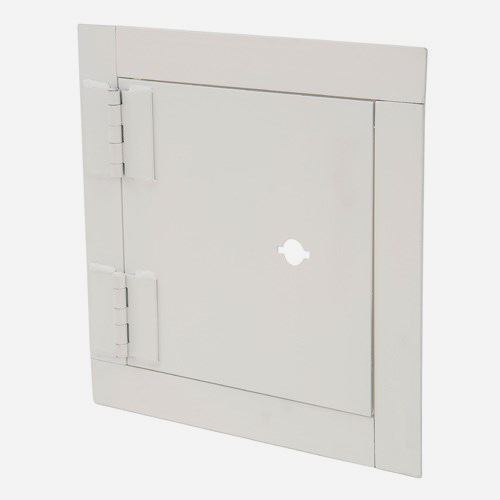

High Security Non-Fire-Rated Access Panel for All Surfaces

Name: High Security Non-Fire-Rated Access Panel for All Surfaces
Brand: Larsen's Manufacturing
SKU: L-SLA Series

Model L-SLA Series

Submittal

Submittal L-SLA Series Access Door (pdf)

Model L-SLA Series

High Security Non-Fire-Rated Access Panel for All Surfaces

ATTENTION: L-DPH Series will be changing to L-SLA Series

Access Door shall be fabricated from 10 gauge steel, and frame from 0.1875 x 2 x 2 inch angle steel, welded and with pre-punched mounting holes. Door shall have a vandal resistant lock and heavy duty hinges welded to the door and frame. Finish shall be a prime coat suitable for painting.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Specifications	3-Part Spec Fire Extinguisher & Cabinets (doc)	Three-Parts Specifications for Fire Extinguishers, Fire Extinguisher Cabinets, Fire Blanket Cabinets, Extinguisher Cabinets	25 KB
Submittals	Submittal L-SLA Series Access Door (pdf)	High Security Non-Fire-Rated Access Panel for All Surfaces [Formerly L-DPH Series]	107 KB
Literature/Brochures	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	712 KB
Literature/Brochures	Larsen's Brochure (pdf)	Larsen's Brochure [2016 Edition]Fire Extinguishers and Brackets, Fire Rated Extinguisher Cabinets — Flame-Shield® Option, Medallion, Architectural, Gemini, Cameo, Occult Series Cabinets; Detention Cabinets, Fire Blanket Cabinets, Exclusive Options	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Options	Lock provided by others (option -LD), Masonry Anchor Straps (option -MAS), Mortise Cylinder Lock (option -MLP), Folger Adams #10 Lock (option -FA12)
Fire Rated	No
AP Latch	Lock by others
AP Door	10 gauge steel with white primecoat finish
AP Frame	0.1875 x 2 x 2 inch steel angle
AP Hinge	Heavy duty hinge
Legacy Model	L-DPH

Product Variations

Image	Model ID	Description
	L-SLA 12x12	12 x 12 Inch High Security Non-Fire-Rated Access Panel for All Surfaces
	L-SLA 16x16	16 x 16 Inch High Security Non-Fire-Rated Access Panel for All Surfaces
	L-SLA 18x18	18 x 18 Inch High Security Non-Fire-Rated Access Panel for All Surfaces
	L-SLA 24x24	24 x 24 Inch High Security Non-Fire-Rated Access Panel for All Surfaces
	L-SLA 24x36	24 x 36 Inch High Security Non-Fire-Rated Access Panel for All Surfaces
	L-SLA 24x48	24 x 48 Inch High Security Non-Fire-Rated Access Panel for All Surfaces
	L-SLA 36x36	36 x 36 Inch High Security Non-Fire-Rated Access Panel for All Surfaces
	L-SLA 36x48	36 x 48 Inch High Security Non-Fire-Rated Access Panel for All Surfaces

High Security Non-Fire-Rated Access Panel for All Surfaces

ATTENTION: L-DPH Series will be changing to L-SLA Series
