Specimen Pass-Thru Cabinet
Specimen Pass-Thru Cabinet
The Larsen’s® Specimen Pass-Thru is a recessed Cabinet to allow Laboratory access to Patient specimen samples, and provides privacy with a clean, finished look.

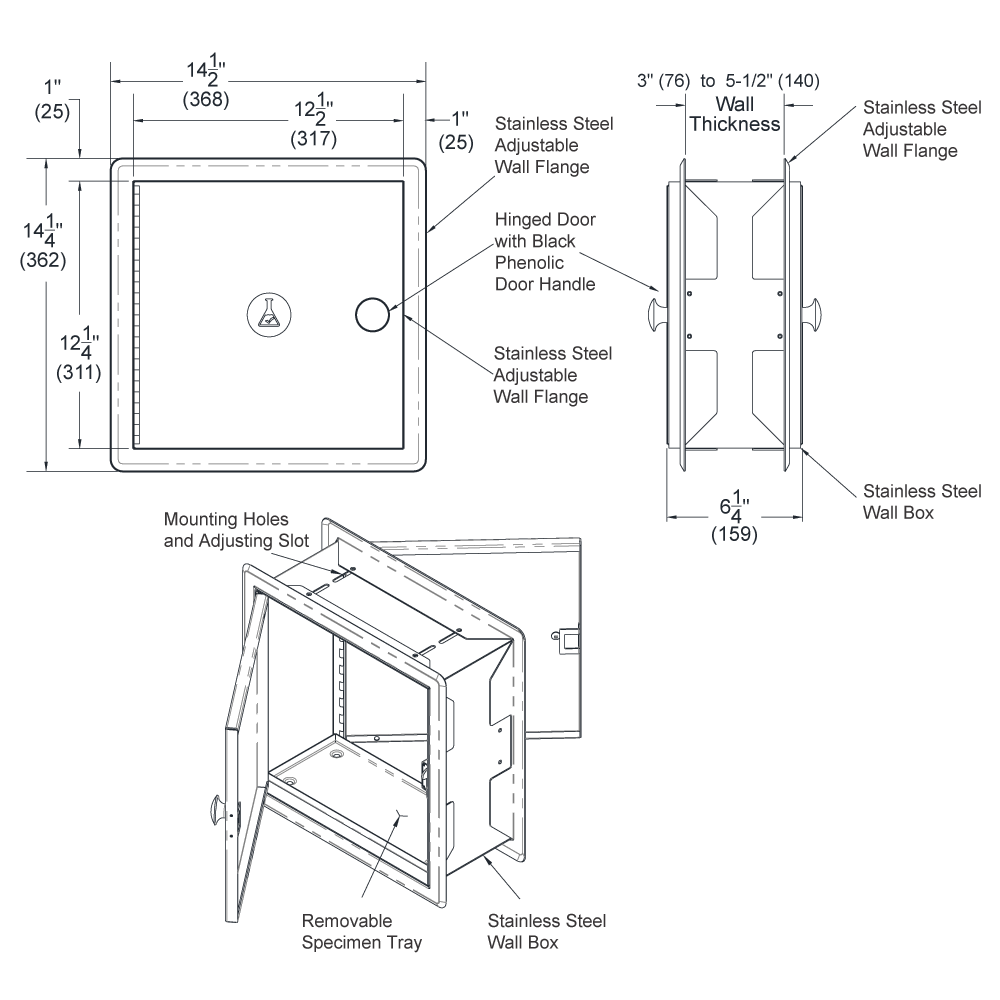

Recessed In-Wall Cabinet, Door and Frame are 16 gauge (0.063) type 304 stainless steel with de-burred edges. Unique assembly allows Wall Flange to adjust to suit a Wall thickness from 3” (76mm) to 5-1/2” (140mm). Assembly is provided in stainless steel with
exposed surfaces polished to a #4 satin finish.
Self-Closing Doors include Laboratory Logo, a full length, Continuous Stainless Steel Piano Hinge and Extension Spring Closing Mechanism. Design allows only one Door at a time to open to provide Patient privacy. Doors include an large, easy to grasp, Black Phenolic Handle.
Specimen Tray is watertight and includes a raised Bottom for improved infectious control and may be removed for cleaning. Tray is heavy gauge type 304 stainless steel.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Specimen Pass-Thru Cabinet | 263 KB | ||
| | Specimen Pass-Thru Cabinet | 281 KB | ||
| | MGI Brands Flyer (pdf) | 712 KB |
Specifications
| Fire Rated | No |
| AP Door Width (inches) | 12.5 |
| AP Door Height (inches) | 12.25 |
| AP Door Width (mm) | 318 |
| AP Door Height (mm) | 311 |
| AP Latch | Phenolic handle |
| AP Door | 16 gauge stainless steel |
| AP Frame | 16 gauge stainless steel |
| AP Hinge | Self-closing piano hinge |
