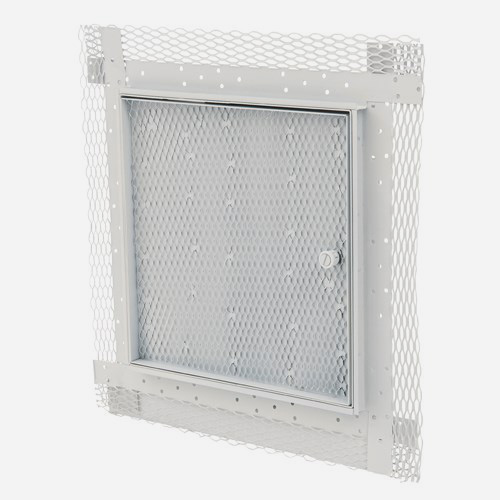

Recessed Access Door for Acoustic Plaster Surface
Model L-AP Series
Submittal
Submittal L-AP Series Access Door (pdf)
Model L-AP Series
Recessed Access Door for Acoustic Plaster Surface
ATTENTION: L-APC Series will be changing to L-AP Series
Access door and frame shall be fabricated from 16 gauge, galvannealed steel with a prime coat finish suitable for painting. The door shall be recessed 0.625 inch and be lined with metal lath. The frame shall have a 3 inch wide metal lath on all four sides. Hinge shall be concealed type. Latch shall be screwdriver operated.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Acoustical Plaster Access Door [formerly L-APC Series] | 0 | 153 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 712 KB |
Specifications
| Options | Allen Key Latch (option -AKL), Cylinder Lock (option -CL), Stainless Steel (option -SS) |
| Fire Rated | No |
| AP Latch | Standard latch is screwdriver operated. |
| AP Door | 16 gauge galvannealed steel with metal lath and white primecoat finish; recessed 0.625 inch to accept plaster. |
| AP Frame | 16 gauge galvannealed steel with metal lath and white primecoat finish |
| AP Hinge | Concealed recessed hinge |
| Legacy Model | L-APC |
Product Variations
Image | Model ID | Description |
|---|---|---|
| L-AP 12x12 | 12 x 12 Inch Recessed Access Panel for Plastered Surface |
| L-AP 12x24 | 12 x 24 Inch Recessed Access Panel for Plastered Surface |
| L-AP 18x18 | 18 x 18 Inch Recessed Access Panel for Plastered Surface |
| L-AP 24x24 | 24 x 24 Inch Recessed Access Panel for Plastered Surface |
| L-AP 24x36 | 24 x 36 Inch Recessed Access Panel for Plastered Surface |
