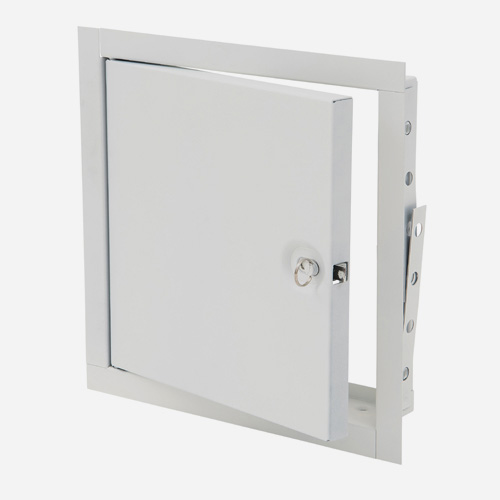

12 x 24 inch Fire Rated Wall Access Door

Model L-FR 12x24

Submittal

Submittal L-FR Series Access Door (pdf)

Model L-FR 12x24

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

	Resource Type	Title	Description	Answers	File Size	Action
	Submittals	Submittal L-FR Series Access Door (pdf)	Fire Rated Wall Access Door - Not Insulated	0	140 KB

Can't find what you are looking for? Get in touch

Shows specifications for standard configuration. Configuration options may change specifications.

Options	Cylinder Lock (option -CL), Stainless Steel (option -SS)
Rough Opening Height (inches)	24.375
Rough Opening Width (inches)	12.375
Fire Rated	Yes
AP Door Width (inches)	12
AP Door Height (inches)	24
AP Door Width (mm)	305
AP Door Height (mm)	610
AP Frame Depth (inches)	2.5
AP Number of Latches	1
AP Latch	Recessed ring attached to sliding bolt, Internal latch release slide
AP Door	16 gauge galvannealed steel with white primecoat finish
AP Frame	16 gauge galvannealed steel with white primecoat finish
AP Hinge	Concealed pivoting rod hinge
Certifications Listings	UL for 1.5 hours in walls, "B" label, ANSI-UL 10B standard, CAN/ULC S104 for 2 hours in walls
