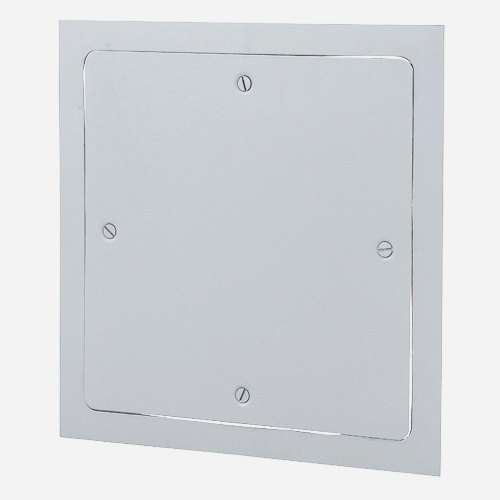

Removable Panel with Weather Stripping

Model Number:  L-WSR Series
Removable Panel is secured to frame with mutiple screwdriver latches. A gasket is affixed to the frame to provide a weather resistant seal.
Product Function:

Though panel assembly is uses a flush gasket between the panel and frame to ensure flush air seal, the assembly is NOT tested for air-tightness. The assembly can be used for all types of walls and ceilings. It is not fire rated.



Regularly Furnished:

Door panel is fully removable and fabricated from 16 gauge galvannealed steel with a white prime coat finish.

Frame is fabricated in one piece, 16 gauge galvannealed steel with a white prime coat finish. It is 1 inch wide and produces perfect concealment of the rough wall opening. Frame is provided with 1/4 inch mounting holes for fastening within the furred spaces. It allows for faster installation and gives maximum clearance.

Latches are screwdriver operated. Larger the door more latches are used.

Standard Available Sizes (W x H in inches): 8 x 8, 10 x 10, 12 x 12, 14 x 14, 16 x 16, 18 x 18, 24 x 24


Product Details
  • AP Door:  16 gauge galvannealed steel with white primecoat finish
  • AP Frame:  16 gauge galvannealed steel with white primecoat finish , Neoprene gasketing
  • AP Latch:  Standard latch is screwdriver operated.
  • Options:  Allen Key Latch (option -AKL) , Cylinder Lock (option -CL) , Cylinder Lock with Dust Shutter (option -CLD) , T Handle (option -TH) , Stainless Steel (option -SS)
Loading...
{{ promotion.promotionTypeName }}

{{ product.promotionCatchPhrase }}

Model Number: {{ product.modelNumber }}

{{ product.productName }}


View on {{ product.siteDisplayName }}
Variations for L-WSR Series
Model NumberAP Door Height (inches)AP Door Width (inches)
L-WSR 10x10 10
10
L-WSR 12x12 12
12
L-WSR 14x14 14
14
L-WSR 16x16 16
16
L-WSR 18x18 18
18
L-WSR 24x24 24
24
L-WSR 8x8 8
8
