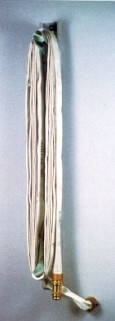

Model Number: HH-100

HH-100HH-100

  • Material: 12 gauge cold-rolled steel with zinc plated finish.



  • Provides hose storage inside columns or close wall to help prevent damage from mobile equipment.



  • Full length of hose is readily available by a swift downward pull of the hose.



  • Unit will accommodate lined and unlined hose from 1" to 2½".



  • Economical and easy to install.

CONSULT THE CHART TO DETERMINE THE APPROXIMATE REQUIRED
SPACING DISTANCE BETWEEN THE UPPER AND LOWER HANGERS.



TOTAL
LOOPS
OF HOSE		 HOSE LENGTH
50' 75' 100' 125' 150'
DISTANCE BETWEEN HANGERS
2 12' - - - -
3 8' 12' - - -
4 6' 9' 12' - -
5 - 7'6" 10' 12' -
6 - 6' 8'6" 10' 12'
7 - - 7' 9' 10'
8 - - 6' 8' 9'
