Model Number: L-ADW 18x18

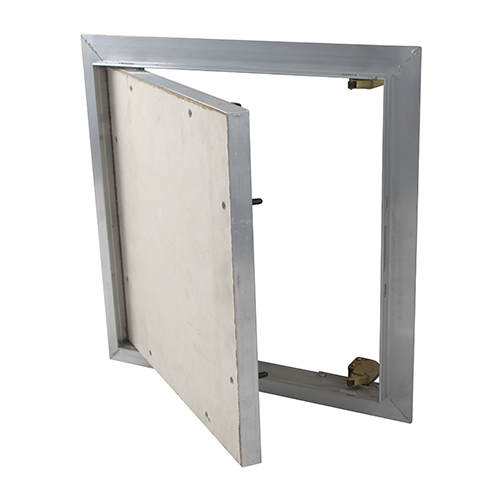

L-ADW 18x1818 x 18 Inch Recessed Dry Wall Aluminum Access Door

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Options
    Allen Key Latch (option -AKL), Cylinder Lock (option -CL), Cylinder Lock with Dust Shutter (option -CLD)
  • Outside Trim Flange Height (inches)
    20.2
  • Outside Trim Flange Width (inches)
    20.2
  • Rough Opening Height (inches)
    18.2
  • Rough Opening Width (inches)
    18.2
  • AP Door Width (inches)
    18
  • AP Door Height (inches)
    18
  • AP Door Width (mm)
    457
  • AP Door Height (mm)
    457
  • AP Frame Depth (inches)
    1.5
  • AP Number of Latches
    2
  • AP Latch
    Concealed touch latch
  • AP Door
    0.08 inch extruded aluminum with 0.5 inch dry wall insert
  • AP Frame
    Reversible 0.08 inch extruded aluminum
  • AP Hinge
    Spring loaded hinge pin
