22 x 30 Inch Fire Rated Access Panels for All Ceiling Surfaces - Stainless Steel
Share this page
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Learn More about this warning

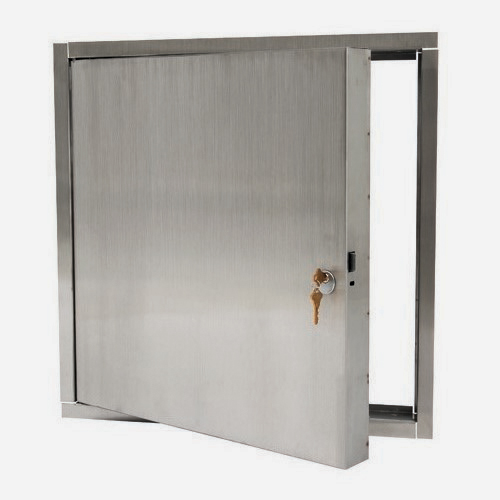

22 x 30 Inch Fire Rated Access Panels for All Ceiling Surfaces - Stainless Steel

Model Number:  L-FRC-SS 22x30View all in Series

ATTENTION:
L-FRAPSS Series will be changing to L-FRC-SS Series


Access door frame shall be fabricated from 16 gauge stainless steel and provided with masonry anchors and bolt holes. Access door panel shall be fabricated from 20 gauge, stainless steel. Door shall be filled with 2 inch thick, fire rated insulation, and be welded pan type. Access door shall have spring automatic closer, be self-latching and contain interior latch release. Exterior latching shall be recessed and universal self-latching bolt, operated by either a knurled knob or flush key.

Product Details
  • Shipping Weight:  32
  • Legacy Model:  L-FRAPSS
  • Outside Trim Flange Height (inches):  32.5
  • Outside Trim Flange Width (inches):  24.5
  • Rough Opening Height (inches):  31.625
  • Rough Opening Width (inches):  23.625
  • Fire Rated:  Yes
  • AP Door Width (inches):  22
  • AP Door Height (inches):  30
  • AP Door Width (mm):  559
  • AP Door Height (mm):  762
  • AP Number of Latches:  2
